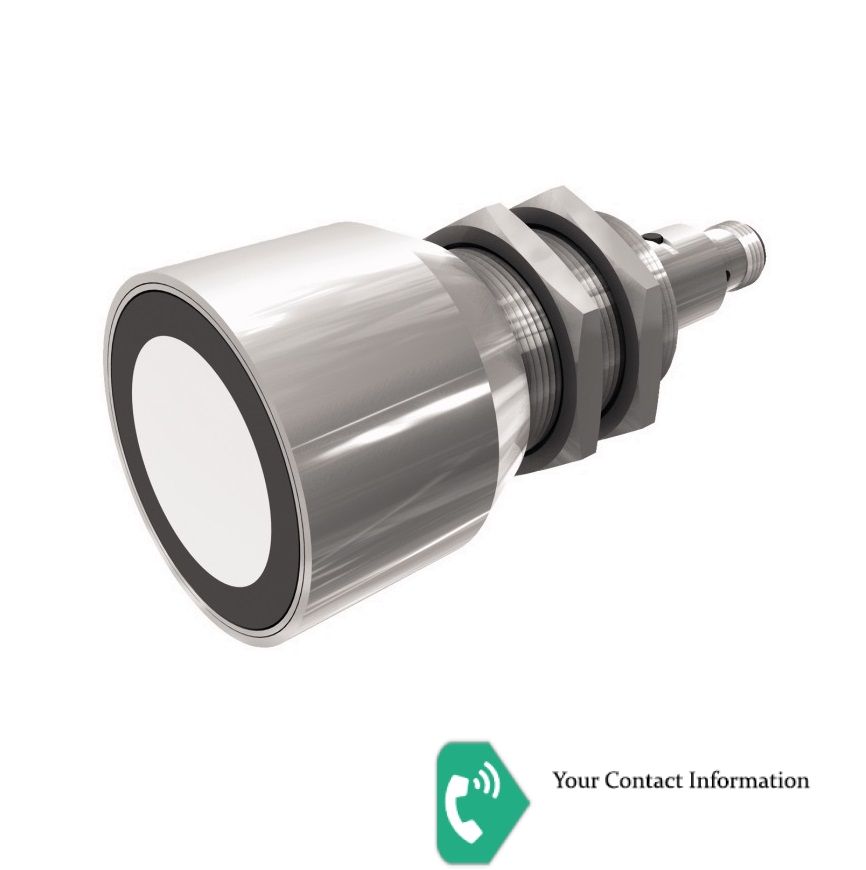

Ultrasonic Sensor – Diffuse Mode Sensor
Type: RU600U-M30E-2UP8X2T-H1151
Function : Proximity
Range : 600…6000 mm
Resolution : 1 mm
Minimum switching range : 50 mm
Ultrasound frequency : 75 kHz
Operating voltage : 15…30 VDC
Residual ripple 10 % Uss
DC rated operational current : ≤ 150 mA
No-load current : ≤ 50 mA
Load resistance : ≤ 1000 Ω
Residual current : ≤ 0.1 mA
