Autonics

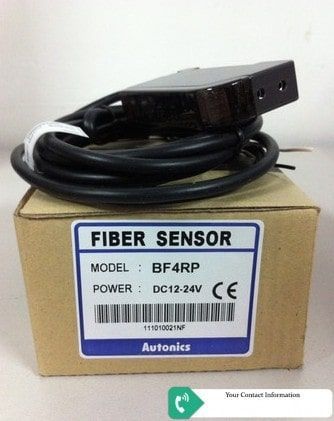

BF4RP
Light sourceRed = LED(660nm)
Response time = Frequency 1: Max. 0.5ms
Frequency = 2: Max. 0.7ms
Power supply = 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption = Max. 45mA
Operation mode = Light ON/Dark ON(set by ON/OFF button)
Control output = PNP open collector
Timer function = OFF Delay(40ms)
Sensitivity adju stment = Manual
Environment_Ambient illumination = Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature = -10 to 50℃, storage: -20 to 70℃
