Autonics

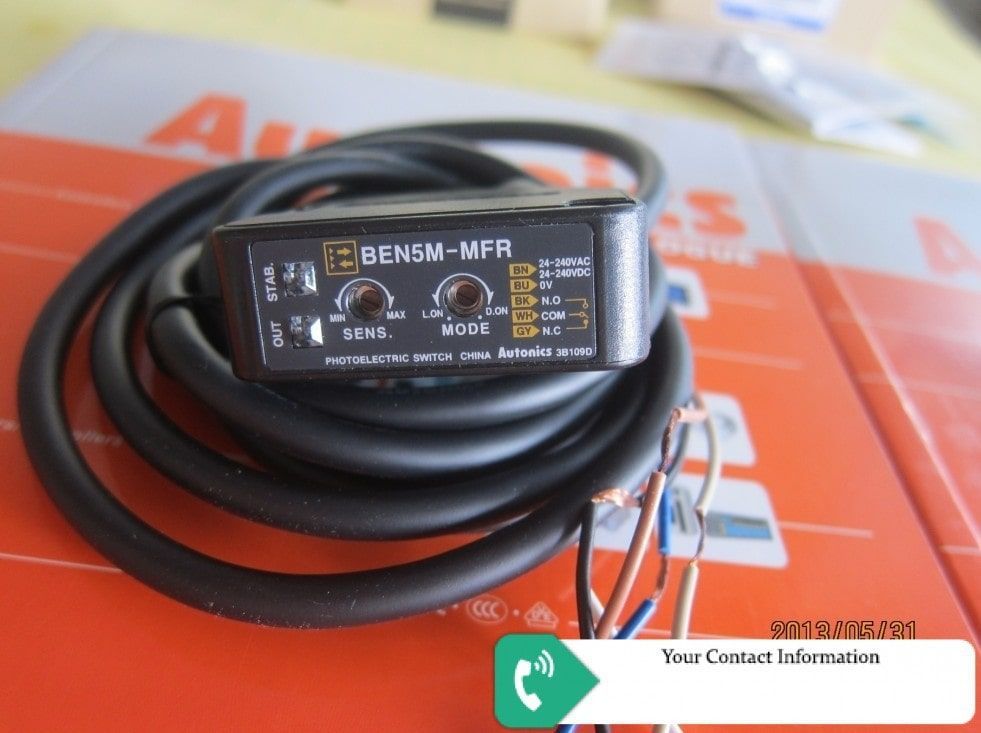

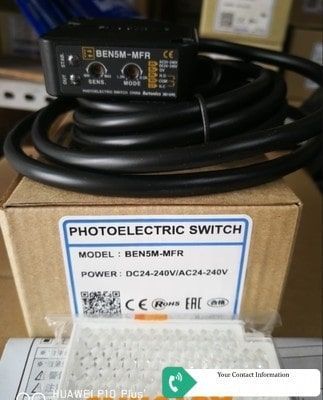

BEN5M-MFR
Sensing type = Retroreflective type(standard type)
Sensing distance = 5m(MS-2)
Sensing target = Opaque material of min. Ø60mm
Light source = Infrared LED(850nm)
Response time = Max. 20ms
Power supply = 24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
Current consumption = Max. 4VA
Sensitivity adjustment = Sensitivity adjuster
Operation mode = Light ON/Dark ON(set by switch)
Control output = Relay
Connection type = Cable type(Ø5, 2m)
