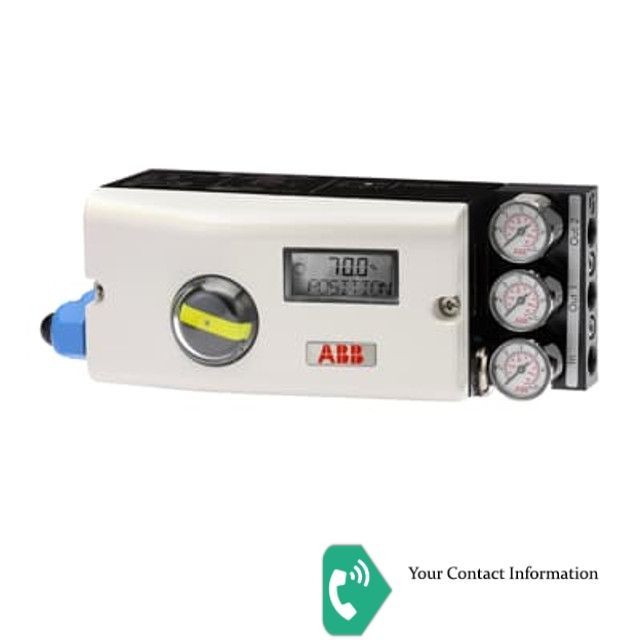

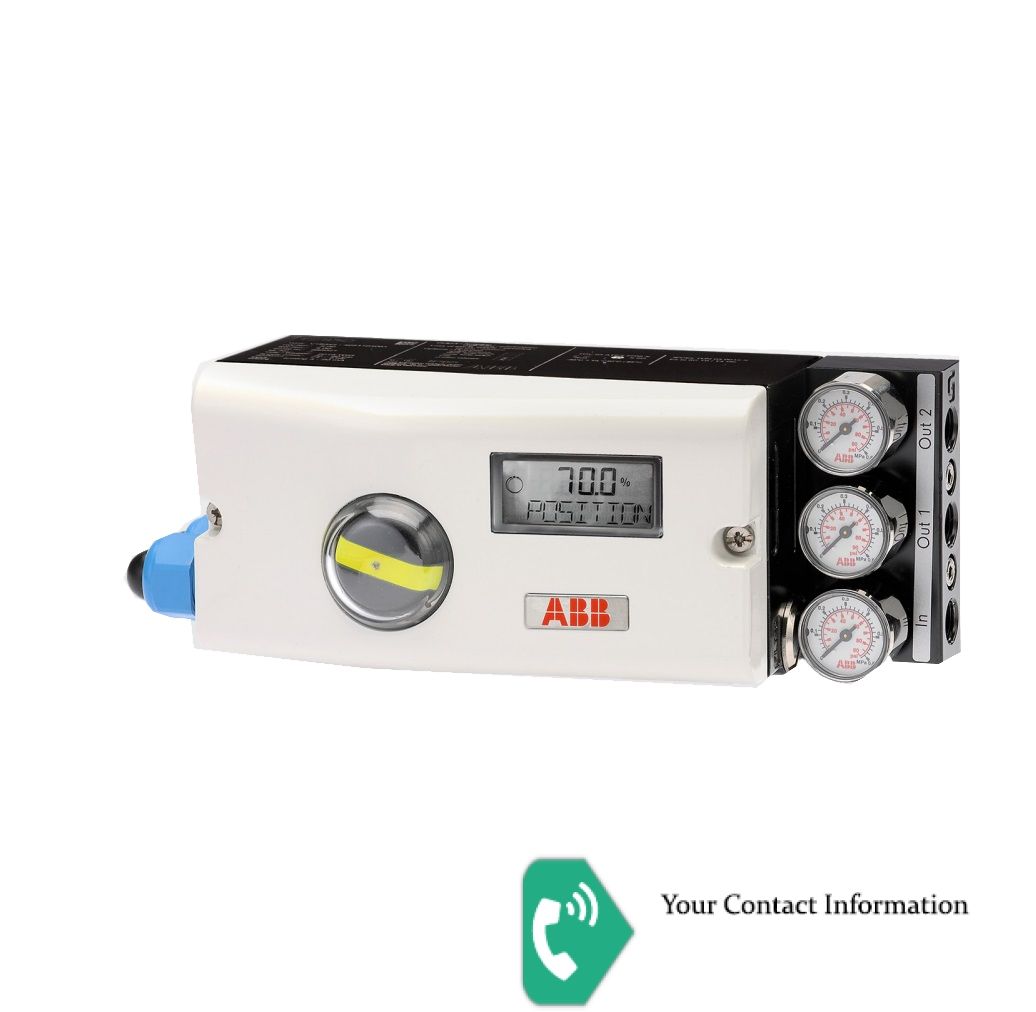

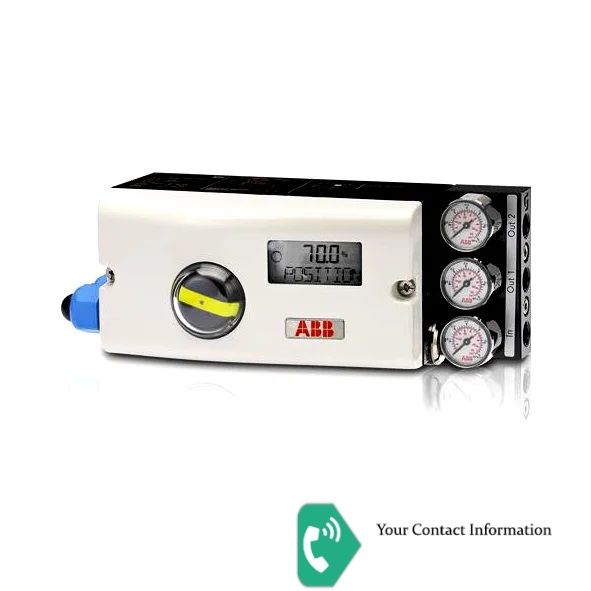

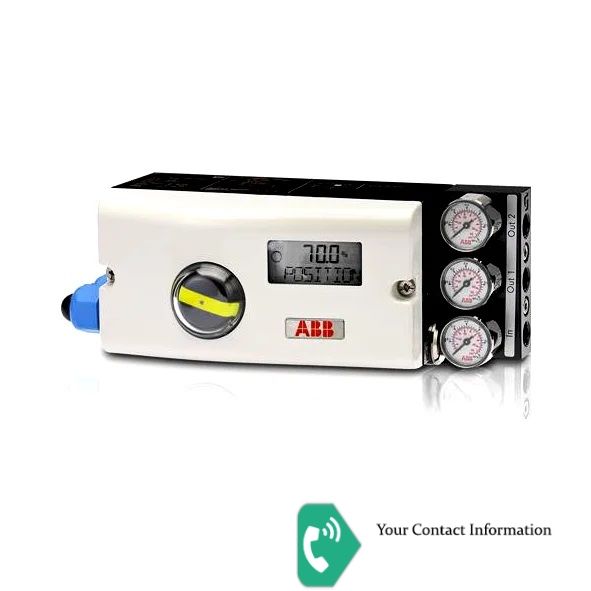

V18345=Base model : TZIDC digital positioner, intelligent, configurable, with indicator and operator panel
20=Case / Mounting: acc. DIN / IEC 534 / NAMUR or to rotary actuators acc. VDI / VDE 3845
2=Input / Communication Port : Input 4 to 20 mA, two-wire, with connector plug for LCI adapter and FSK module for HART
4=Explosion protection : ATEX EEx n A II T6
2=Output / Safe Position (in case of an electrical power failure) : Single acting, fail freeze
5=Connections : Cable: Thread M20 × 1.5, air pipe: Thread ¼-18 NPT
1=Option Modules for Analog or Digital Position Feedback : Plug-in module for analog position feedback, signal range 4 bis 20 mA, two-wire
00=Optional Mechanical Kit for Digital Position Feedback : Without
1=Design (Varnish / Coding) : Standard
