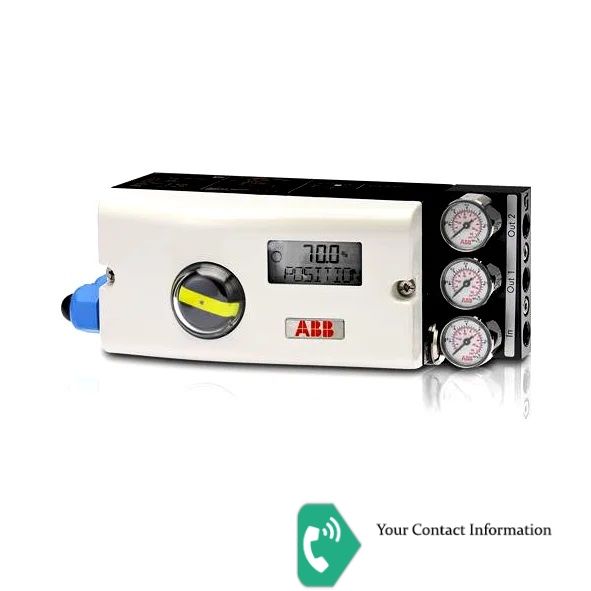

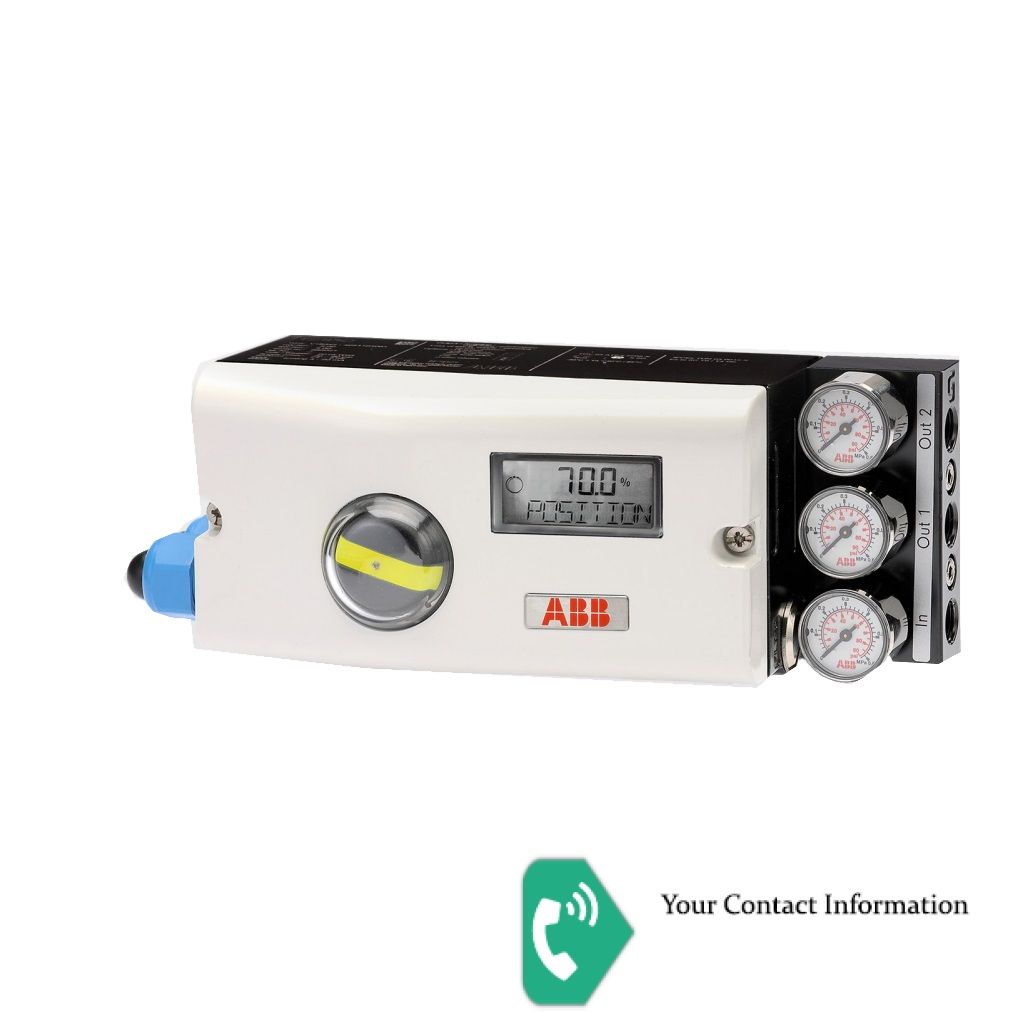

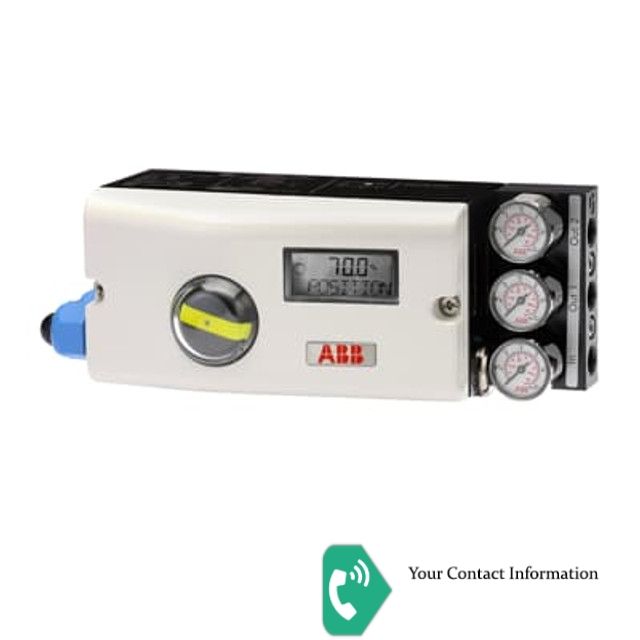

V18345=Base model : TZIDC digital positioner, intelligent, configurable, with indicator and operator panel
10 = Case / Mounting : Case made of aluminium, varnished, for mounting to linear actuators acc. DIN / IEC 534 / NAMUR or to
rotary actuators acc. VDI / VDE 3845
2=Input / Communication Port : Input 4 to 20 mA, two-wire, with connector plug for LCI adapter and FSK module for HART
0=Explosion Protection : Without
4=Output / Safe Position (in case of an electrical power failure): Double acting, fail safe
2=Connections : Cable: Thread ½-14 NPT, air pipe: Thread ¼-18 NPT
1=Option Modules for Analog or Digital Position Feedback : Plug-in module for analog position feedback, signal range 4 bis 20 mA, two-wire
00=Optional Mechanical Kit for Digital Position Feedback : Without
P=Design (Varnish / Coding) : Protection Class IP 66 / NEMA 4X
