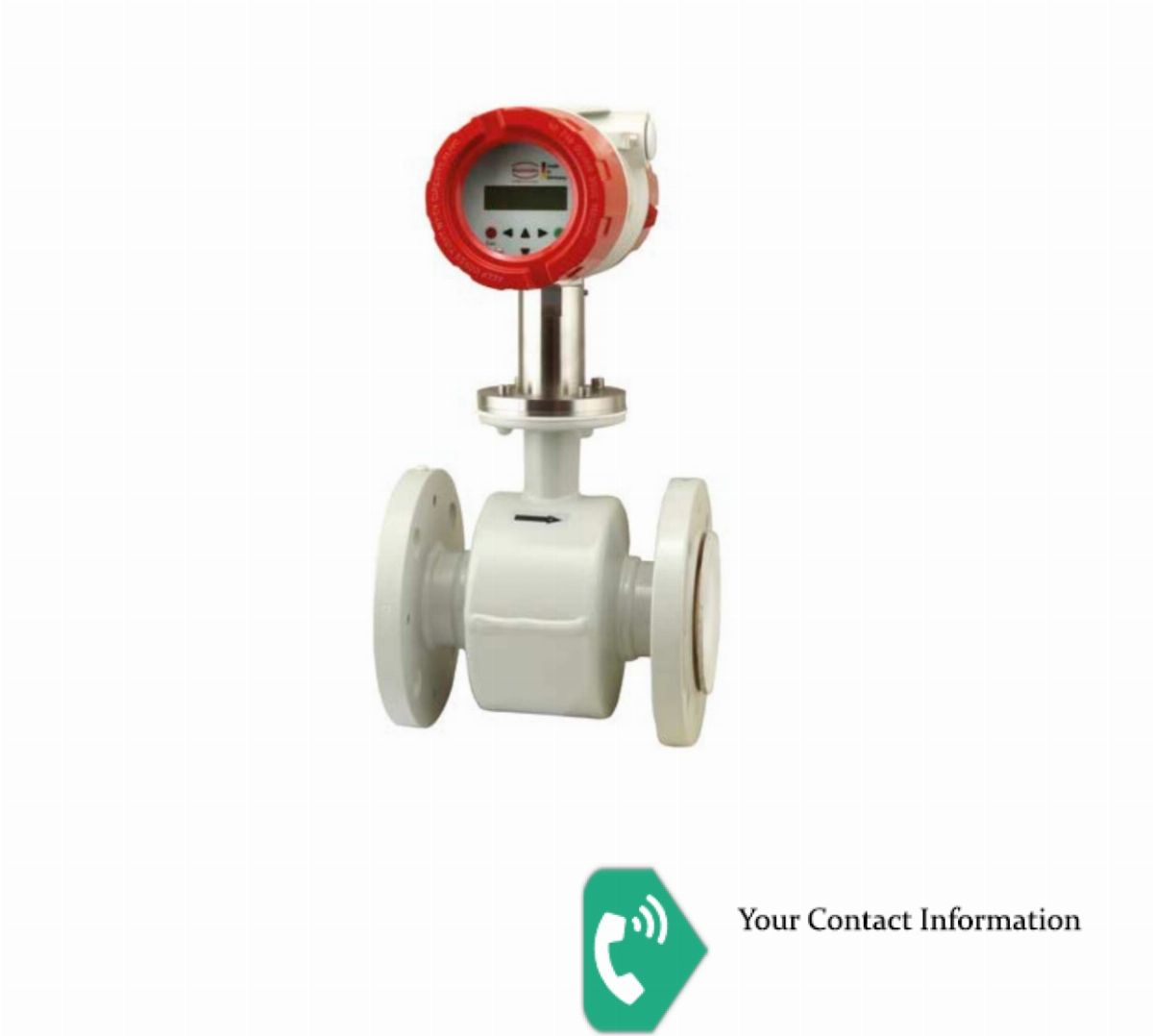

Magnetic-inductive flow meter
EPS / UMF2
P= Material Lining : PTFE , Electrodes: Standard 2x Measuring Electrodes ,Process-Temperature: -20°C…+150°C
205R=Process connection: 1½" Class 150 RF ASME B16.5-2003 , Max. measuring range: 45 m³/h , Installation length: 200 mm
2= Material Process connection :2 Flange st.st. 1.4301 (DN2…10 in 1.4404)
H= Material electrodes: Hastelloy
H=Earthing electrode: Hastelloy
1=Transmitter mounting: Integrated transmitter , Protection class, sensor:IP67
0=Certificates: w/o
UMF2-
B =Mounting:Integrated transmitter IP 67 standard , Thread - electrical connection: M20 x 1,5
1=Display and control unit :integrated
1=Power supply: 230V AC (+10%, -15%), 50/60Hz
G=Output signal: current output: 1x 0/4-20 mA c/w HART protocoll
0BH=Design: Heinrichs
0=Longer cable: 2,5m standard on remote version , breakout cable
