Coriolis Flow and Density Meters
Micro Motion D

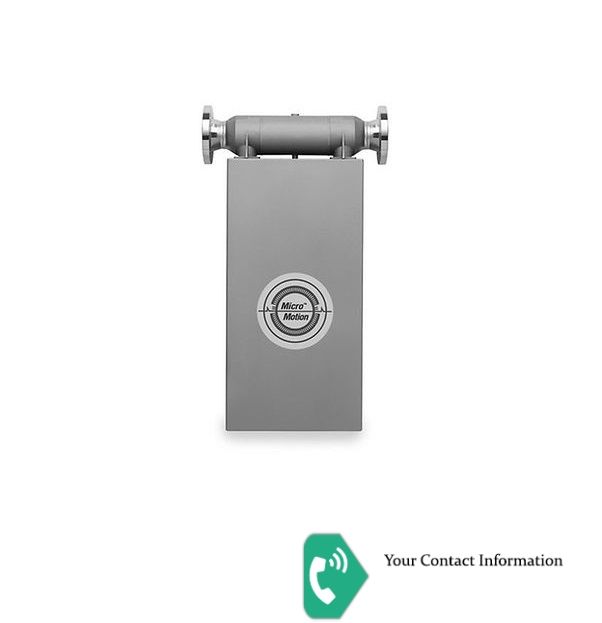

DS600S= Sensor model: Micro Motion Coriolis D-Series sensor; 6-inch; standard pressure; 316L stainless steel
166=Fittings: 6-inch ANSI 300 lb weld neck raised face flange , Face-to-face inches (mm), Outside diameter inches (mm): 43 3/4 (1111) 12 1/2 (317)
S=Case options: Standard case
K=Electronics interface : Integral booster amp with local core processor to remote mount Series 1000/2000 transmitters
F=Conduit connections: M20 with brass nickel cable gland (cable diameter 8.5 to 10.0mm)
Z=Approvals :CENELEC - Increased Safet
E=Language : English Quick Reference Guide and English Manual
B=Connection to Booster Amp: M20 brass nickel adapter
Z=Measurement Application Software : none
Z=Future Options : Reserved for future use
Z=Factory Options : Standard produc
