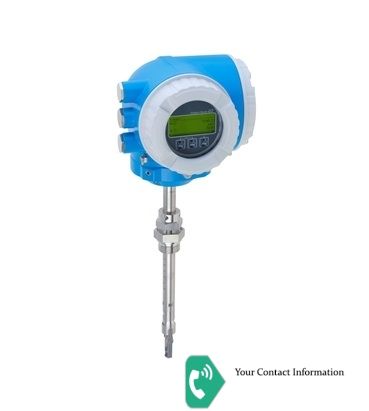

Proline t-mass I 300
thermal mass flowmeter
Approval; Transmitter + Sensor: BD ATEX+IECEx; Z0/1, Z21, Ex d, IIC/IIIC
Power Supply: D DC 24V
Output; Input 1: BA 4-20mA HART
Output; Input 2: B 4-20mA
Output; Input 3: B 4-20mA
Display; Operation: O Remote display 4-line illum., 10m/30ft cable; touch control
Housing: A Alu, coated
Electrical Connection: D Thread NPT1/2
Sensor Version; Sensor; Insertion Tube: SB Bidirectional; stainl. steel; stainl. steel
Process Connection: NA2 1" NPT, compression fitting
Seal: BA Metallic, -40...+180oC
Flow Calibration: G Factory calibration
Device Model: A2 2
>Operation Language Display: AA English
>>Service: I7 Product documentation on paper
>>Accessory Enclosed: PB Weather protection cover
PD Mounting boss, 1" NPT
RA Mounting bracket, pipe 1"/2"
>Firmware Version: 78 01.00.zz, HART, DevRev01
