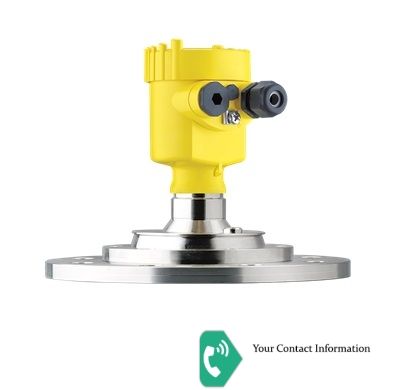

VEGAPULS 69
Radar sensor for continuous level measurement of bulk solids
Approval=for Ex-free area
Version / Material=Metal jacketed lens antenna with rinsing air connection / PEEK
Process fitting / Material= Swivelling holder with flange DN100 PN16 Form B, DIN / 316/316L
Seal / Process temperature=FKM (SHS FPM 70C3 GLT) and PEEK / -40...+130°C
able entry / Connection=M20x1.5 / Cable gland PA black (ø5-9mm), standard
Electronics=Two-wire 4 ... 20 mA/HART
Supplementary electronics=without
Overvoltage protection of the supply cable=without
Housing / Protection=Plastic single chamber / IP66/IP67
Display/adjustment module PLICSCOM=mounted
Additional equipment=without
Measurement loop identification label=without
Certificates=
Operating instructions=DE - GermanNo
Customer-specific adjustment=No
Address setting=No
Application-specific settings=without
Linearization=No
Max. measuring range=120 mMin.
process pressure in bar-1
Max. process pressure in bar=3
