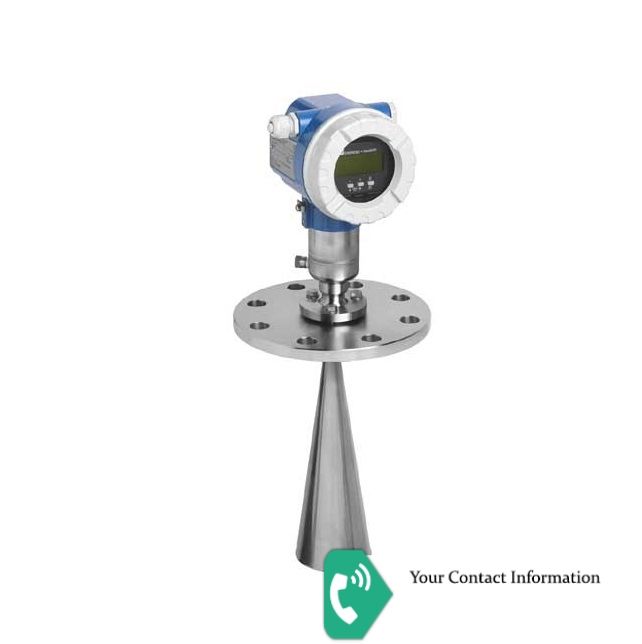

Micropilot M FMR250
A=Approval: Non-hazardous area
5=Antenna: ***Horn 100mm/4"
E=Antenna Seal; Temperature: FKM Viton GLT; -40..200oC/-40...392oF
1=Antenna Extension: Not selected
XCJ=Process Connection: Align. device., UNI 4"/DN100/100, 316L max 14.5lbs/PN1/1K, suitable for 4" 150lbs / DN100 PN16 / 10K 100
A=Output; Operating: 4-20mA SIL HART;4-line display VU331, envelope curve display on site
A=Housing: F12 Alu, coated IP65 NEMA4X
2=Cable Entry: Gland M20 (EEx d > thread M20)
K=Additional Option: Air purge connection G1/4
