CLS300,STANDARD,ROD VERSN,THREAD/FLANGE

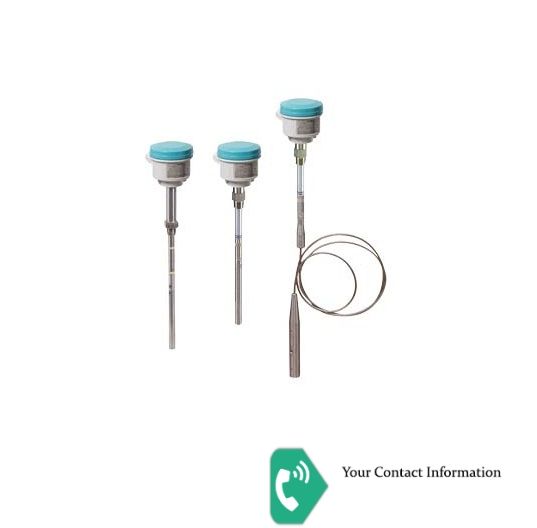

7ML5650: Pointek CLS300 RF Capacitance point level switch, rod design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe.
5H = Process Connection: Welded flange, 316L (1.4404) stainless steel, raised face: 2" ASME, 300 lb
A = Probe length: (length from flange face) (threaded lengths include process thread) Standard version, rod 350 mm (13.78")
0 = Thermal Isolator: Without thermal isolator
0 = Wetted Seals: FKM
0 = Probe Material: 316L Stainless Steel with PFA lining and PEEK Isolators
D = Approvals: Flameproof Enclosure With IS Probe: CE, UKCA, RCM, ATEX, UKEX II 1/2G Ex ia/db; ATEX, UKEX II 1/2D Ex ia/tb Enclosure and Lid B Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP65
0 = Active Shield Length: Standard length - (125 mm threaded, 105 mm flanged)
