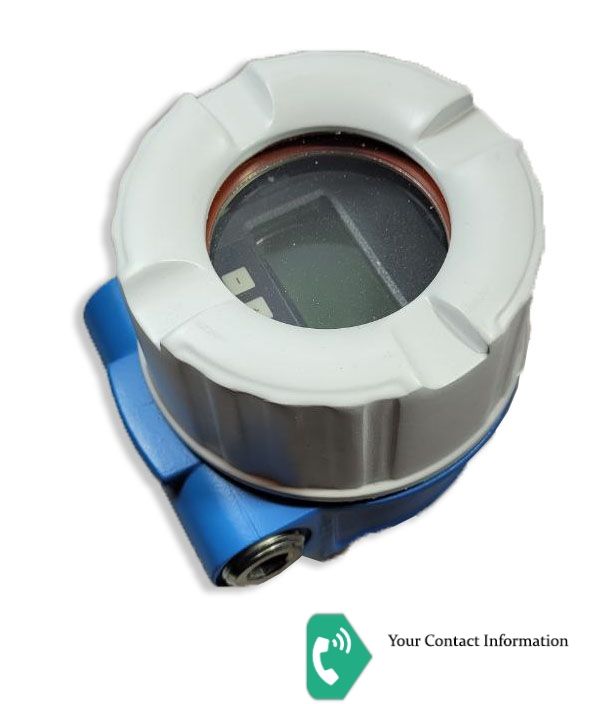

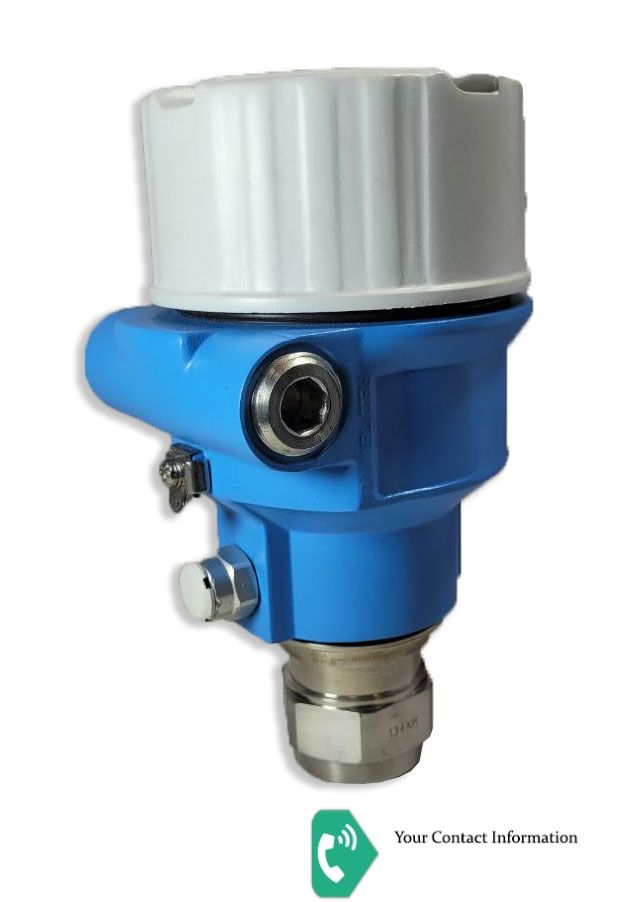

PMP51-AA21JD1PGCR1JA1+AKZ1
Approval: AA = Non-hazardous area
Output: 2 = 4-20mA HART

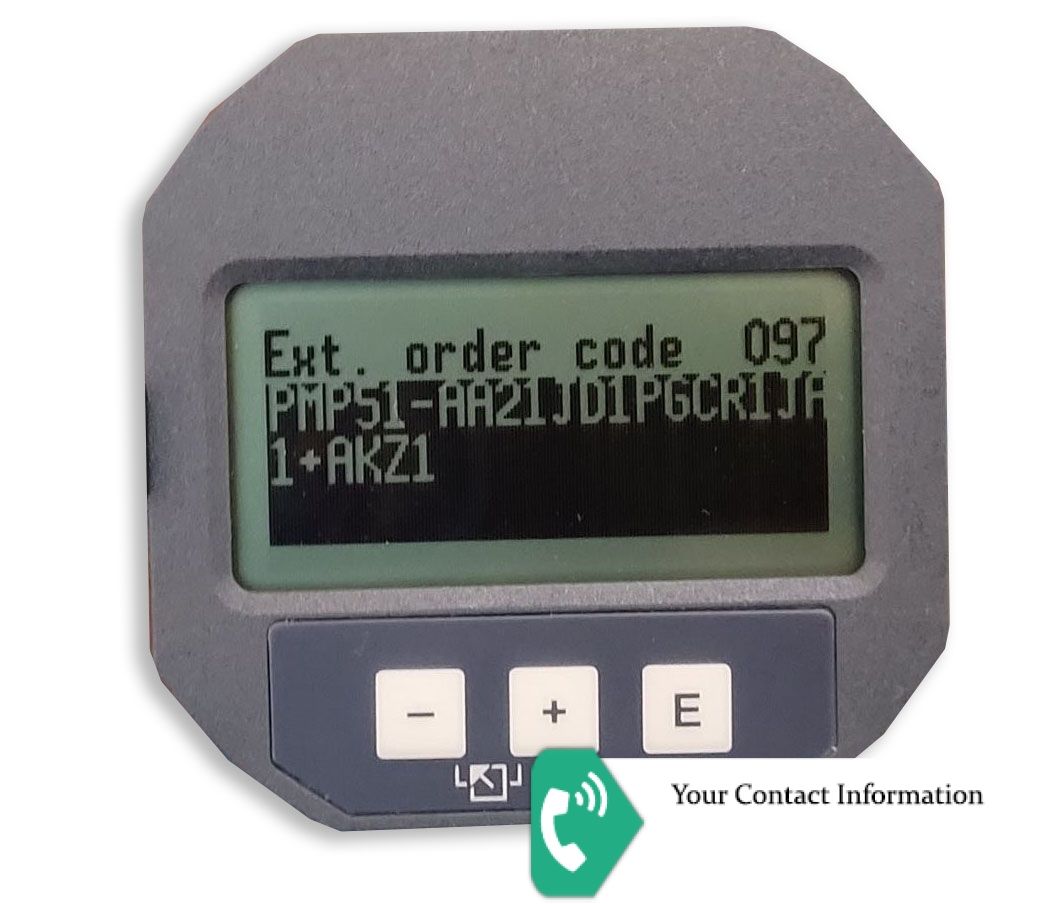

Display, Operation: 1 = LCD, push button on display/electronics
Housing: J = F31 Alu, glass window
Electrical Connection: D = Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 1P = 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O overload: 40bar/4MPa/600psi
Reference Accuracy: G = Standard
Calibration; Unit: C = Sensor range; kPa/MPa
Process Connection: R1J = Thread ANSI FNPT1/2, 316L
Membrane Material: A = 316L
Fill Fluid: 1 = Silicone oil
Additional Operation Language: AK = Chinese simplified
Marking: Z1 = Tagging (TAG), see additional spec
