Absolute and gauge pressure

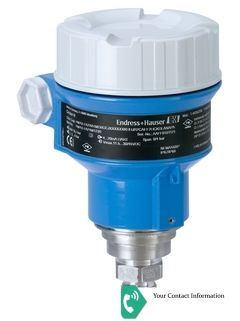

Cerabar PMP51
Approval: AA Non-hazardous area
Output: 1 4-20mA
Display, Operation: 2 W/o LCD, push button on electronics
Housing: I F31 Alu
Electrical Connection: A Gland M20, IP66/68 NEMA4X/6P
Sensor Range: 1S 40bar/4MPa/600psi gauge, 400mH2O/1334ftH2O/16000inH2O overload: 160bar/16MPa/2400psi
Reference Accuracy: G Standard
Calibration; Unit: J Customised pressure; see additional spec.
Process Connection: G1J Thread DIN13 M20x1.5, 316L, hole 11.4mm
Membrane Material: A 316L
Fill Fluid: 1 Silicone oil
