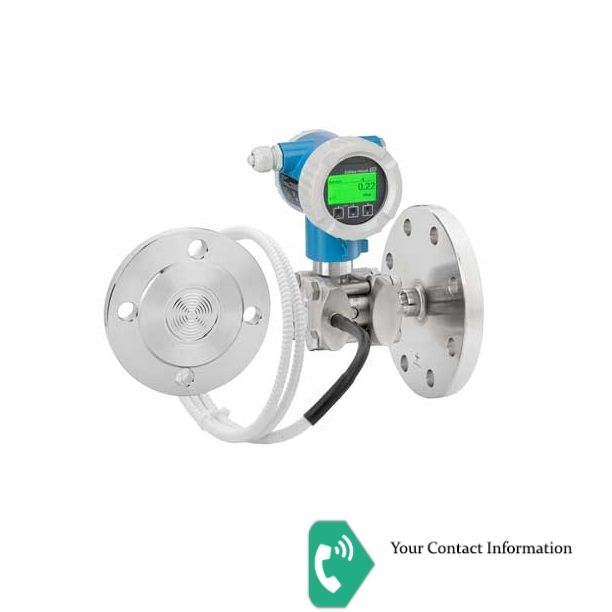

Deltabar PMD78B
BA = Approval : ATEX/IEC II 1G Ex ia IIC T6 Ga
BA=Output: 2-wire 4-20mA HART
E= Display; Operation : Graphic display with touch control
J= Housing; Material: Dual compartment; Alu, coated
C= Electrical Connection: Gland M20, 316L, IP66/68 NEMA Type 4X/6P
C= Application: Diaphragm seal both side
7H= Sensor Range: 3bar/300kPa/45psi
B= Calibration; Unit: Sensor range; mbar/bar
M= Design HP Side: ..... m capillary, 316L
HCM= Design LP Side: ..... m capillary, 316L
VD=Process Connection, Sealing Surface: Barrel, flange ASME B16.5, RF
9YY=Process Connection HP Side: Special version, TSP-no. to be spec.
9YY= Process Connection LP Side: Special version, TSP-no. to be spec.
M= Membrane Material; Application: 2x AlloyC276; diaphragm seal
2=Fill Fluid: Silicone oil
A=Seal LP Side: W/o
AA= Operation Language Display: English
Q1= Accessory Enclosed: Mounting bracket, wall/pipe, 316L
Z1= Marking: Tagging (TAG), see additional spec.
