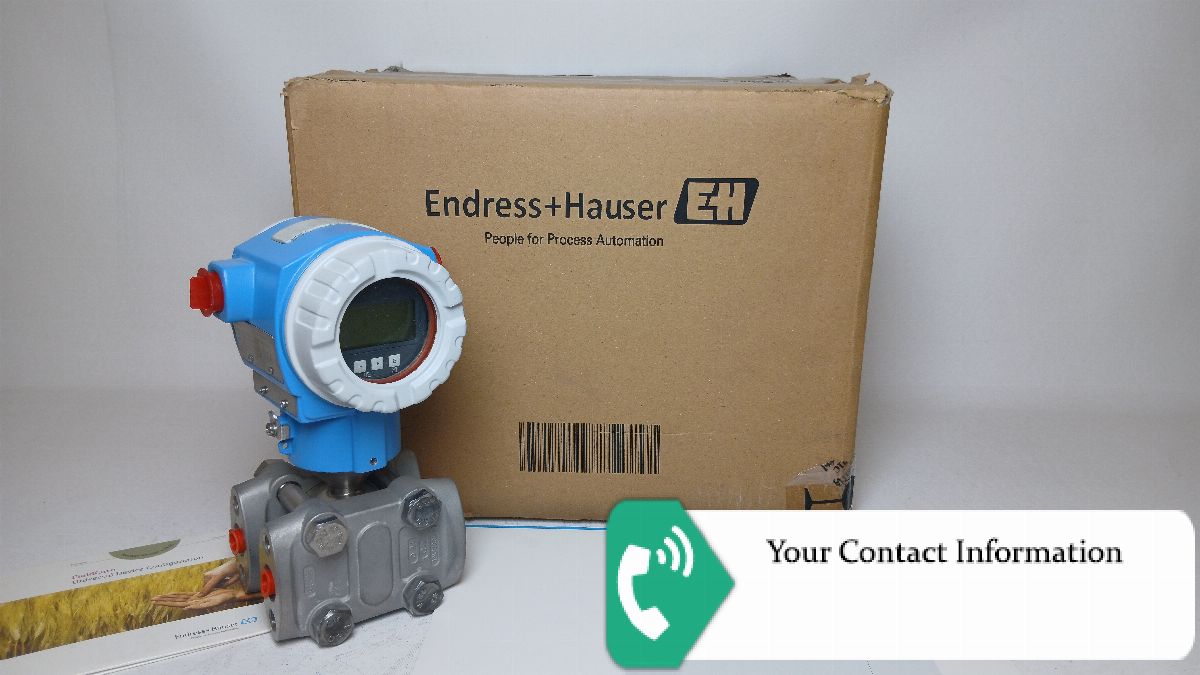

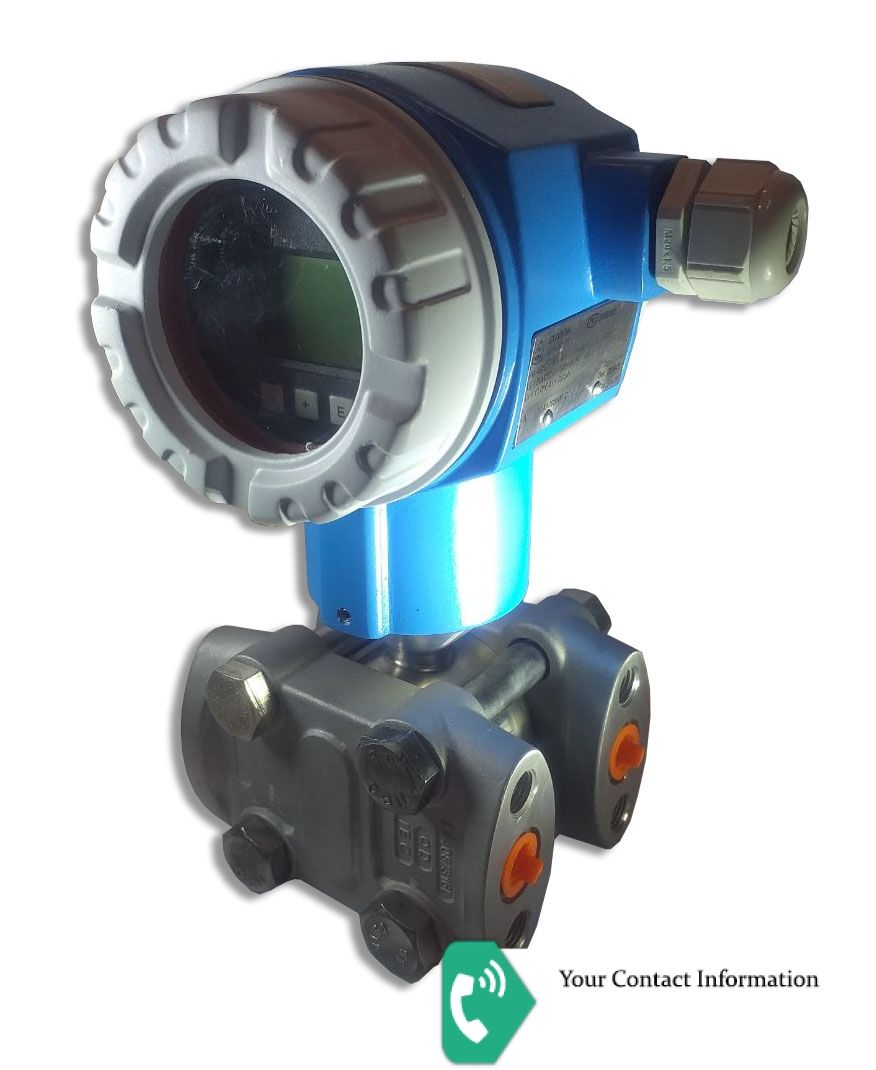

PMD75-HBA8HB1DAEU+Z1
Approval: H = NEPSI Ex ia IIC T6
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Nominal Range; Cell Material; PN: 8H = 3bar/300kPa/45psi; 316L; 420bar/ 42MPa/6300psi
Calibration; Unit: B = Customised; see additional spec.
Membrane Material: 1 = 316L
Process Connection: D = NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L
Seal: A = FKM Viton
Additional Option 1: E = SIL
Additional Option 2: U = Mounting bracket, wall/pipe, 316L, heavy duty design
Marking: Z1 = Tagging (TAG), see additional spec.
