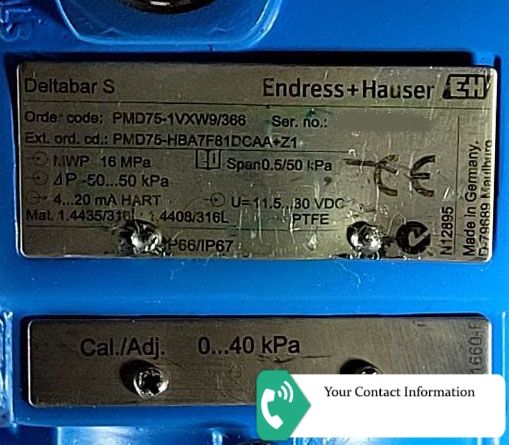

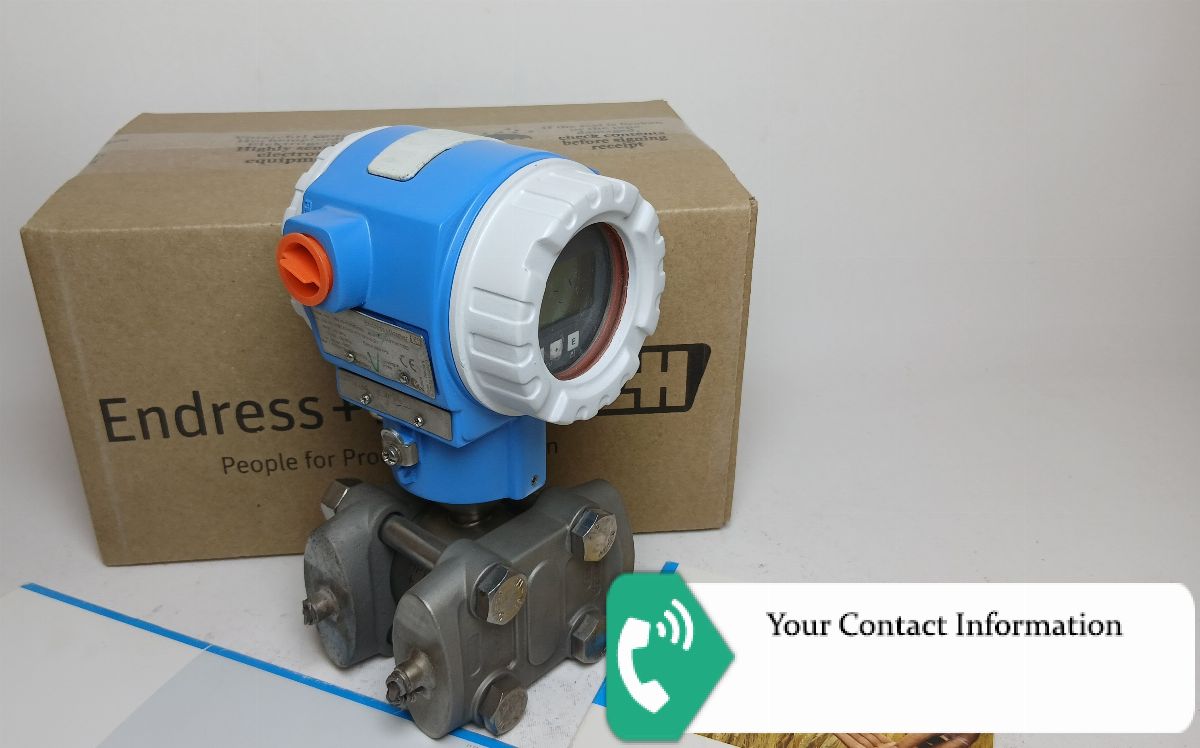

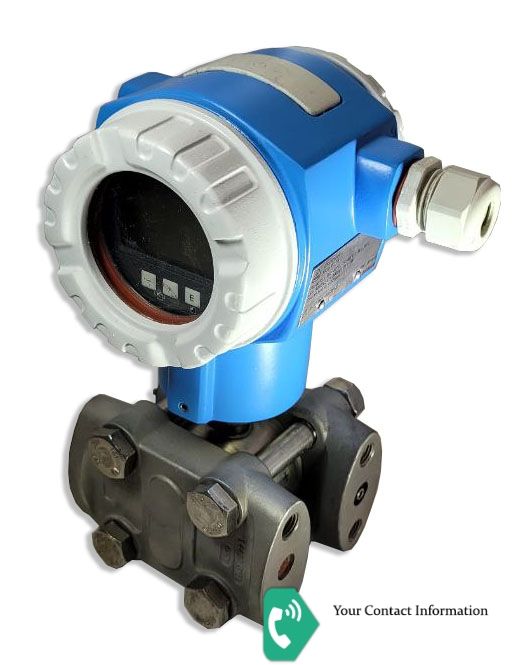

PMD75-HBA7F81DCAA+Z1
Approval: H = NEPSI Ex ia IIC T6
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Nominal Range; Cell Material; PN: 7F = 500mbar/50kPa/7.5psi; 316L; 160bar/ 16MPa/2400psi
Calibration; Unit: 8 = Adjusted for Deltatop; see additional spec.
Membrane Material: 1 = 316L
Process Connection: D = NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L
Seal: C = PTFE (PN160bar/16MPa/2400psi)
Additional Option 1: A = Not selected
Additional Option 2: A = Not selected
Marking: Z1 = Tagging (TAG), see additional spec.
