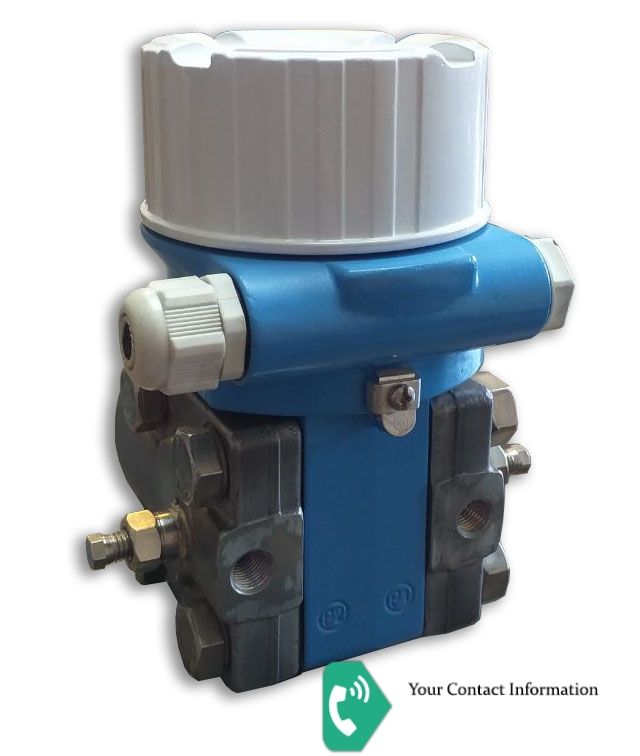

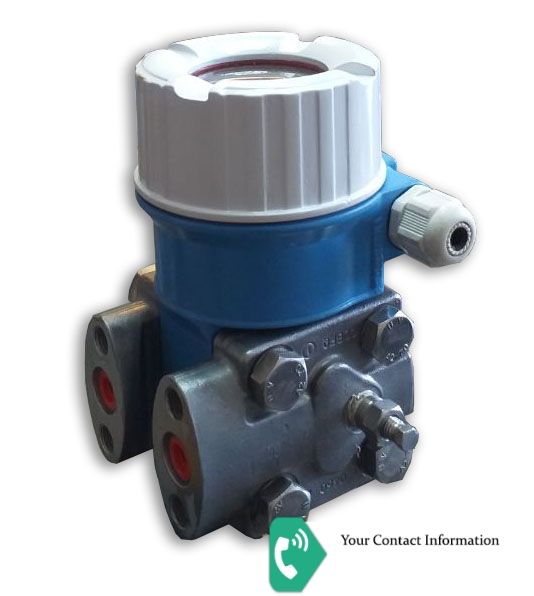

PMD55-AA31BA27BGCHA4A1A+AK
Approval: AA = Non-hazardous area
Output: 3 = PROFIBUS PA

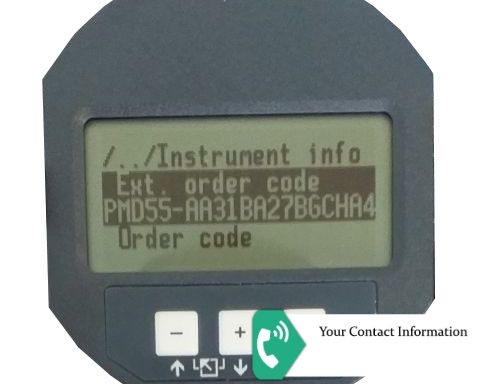

Display, Operation: 1 = LCD, push button on display/electronics
Housing: B = F30 Alu, glass window
Electrical Connection: A = Gland M20, IP66/67 NEMA4X/6P
Nominal Pressure PN: 2 = 1bar/100kPa/14.5psi
Sensor Nominal Value: 7B = 10mbar/1kPa/0.15psi
Reference Accuracy: G = Standard
Calibration; Unit: C = Nominal value; kPa/MPa
Process Connection: HA4 = NPT1/4-18 IEC61518 UNF7/16-20, C22.8, V1 Installation impulse line vertical Alignment 90deg
Membrane Material: A = 316L
Fill Fluid: 1 = Silicone oil
Seal: A = FKM Viton
Additional Operation Language: AK = Chinese simplified
