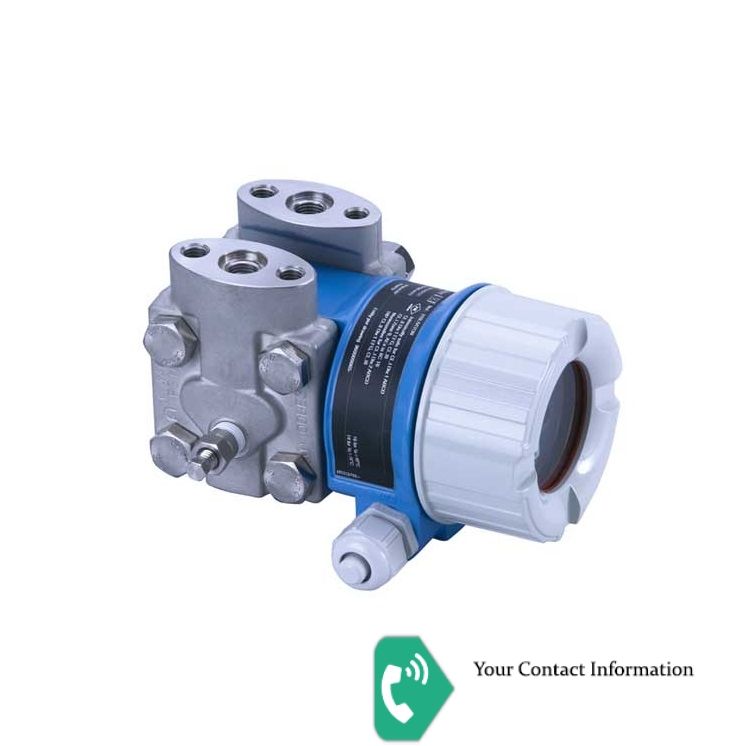

Deltabar M PMD55
Differential pressure measurement
AA=Approval: Non-hazardous area
2=Output: 4-20mA HART
1=Display, Operation: LCD, push button on display/electronics
B=Housing: F30 Alu, glass window
A=Electrical Connection: Gland M20, IP66/67 NEMA4X/6P
6=Nominal Pressure PN: 70bar/7MPa/1015psi
7F=Sensor Nominal Value: 500mbar/50kPa/7.5psi
G=Reference Accuracy: Standard
L=Calibration; Unit: Customised flow; see additional spec.
HBJ=Process Connection: NPT1/4-18 IEC61518 M10, 316L, V1 Installation impulse line vertical Alignment 90deg
A=Membrane Material: 316L
2=Fill Fluid: Inert oil
C=Seal: PTFE
F1=>Calibration: Factory calibration certificate, 5-point
PD=>>Accessory Enclosed: Mounting bracket, wall/pipe, 316L, standard design
