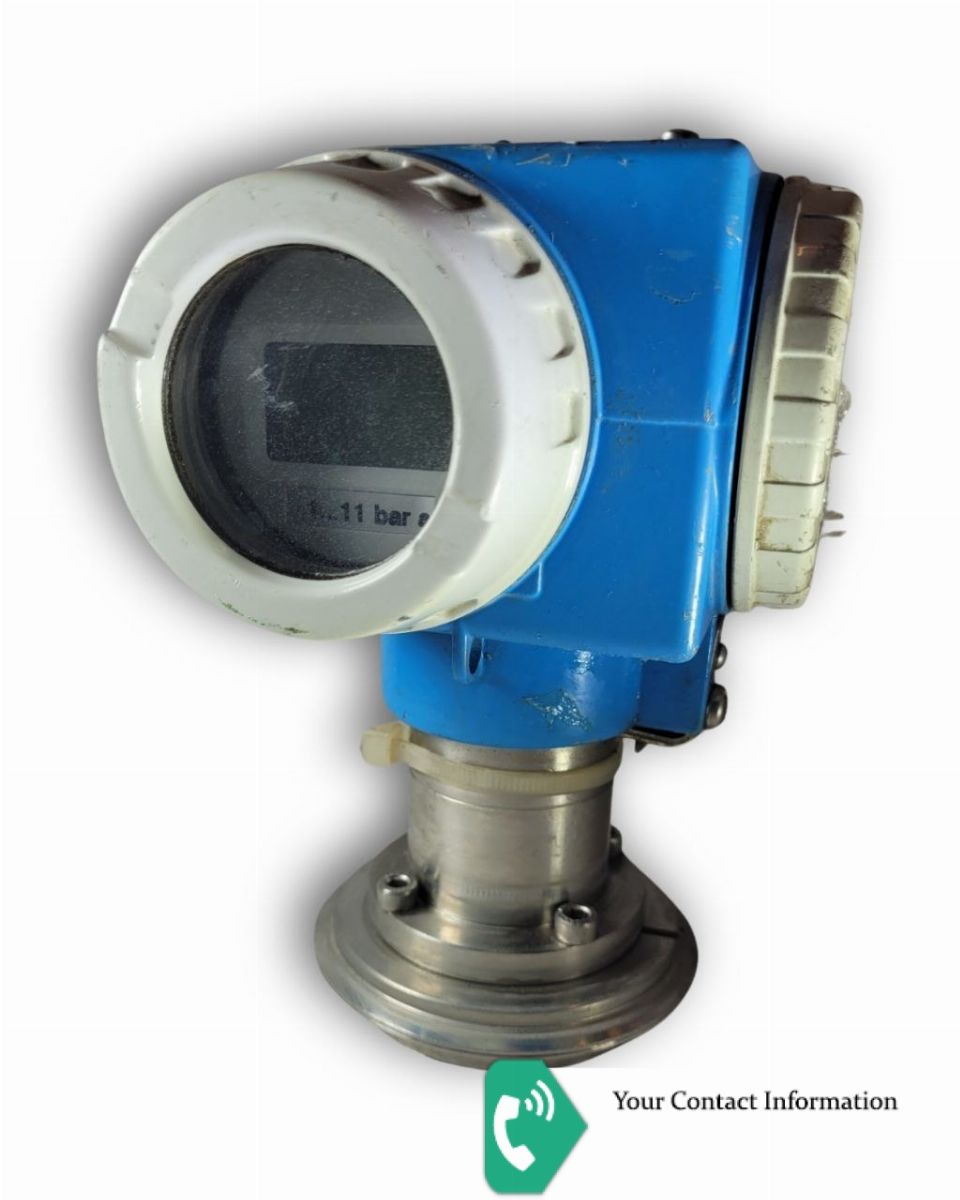

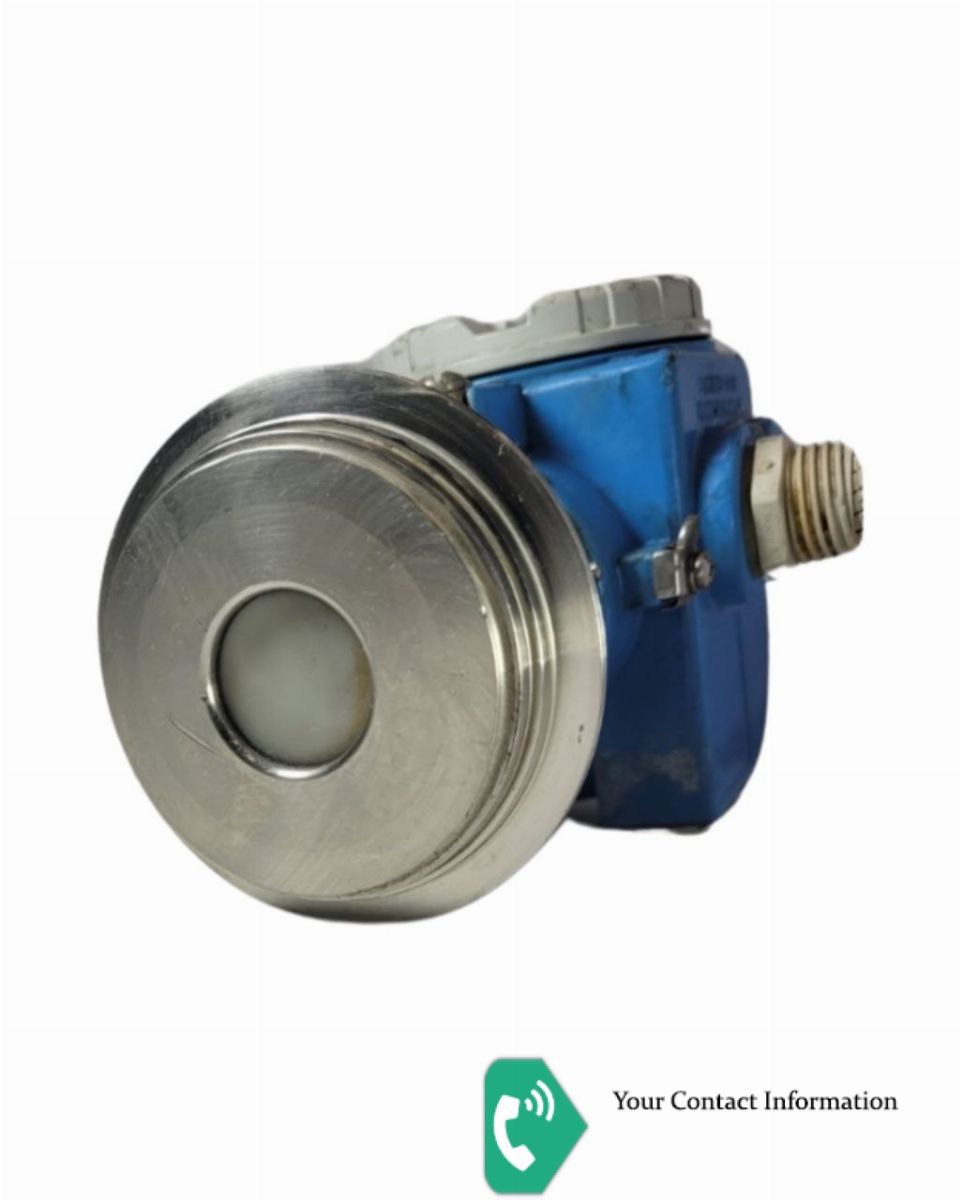

Cerabar S PMC731

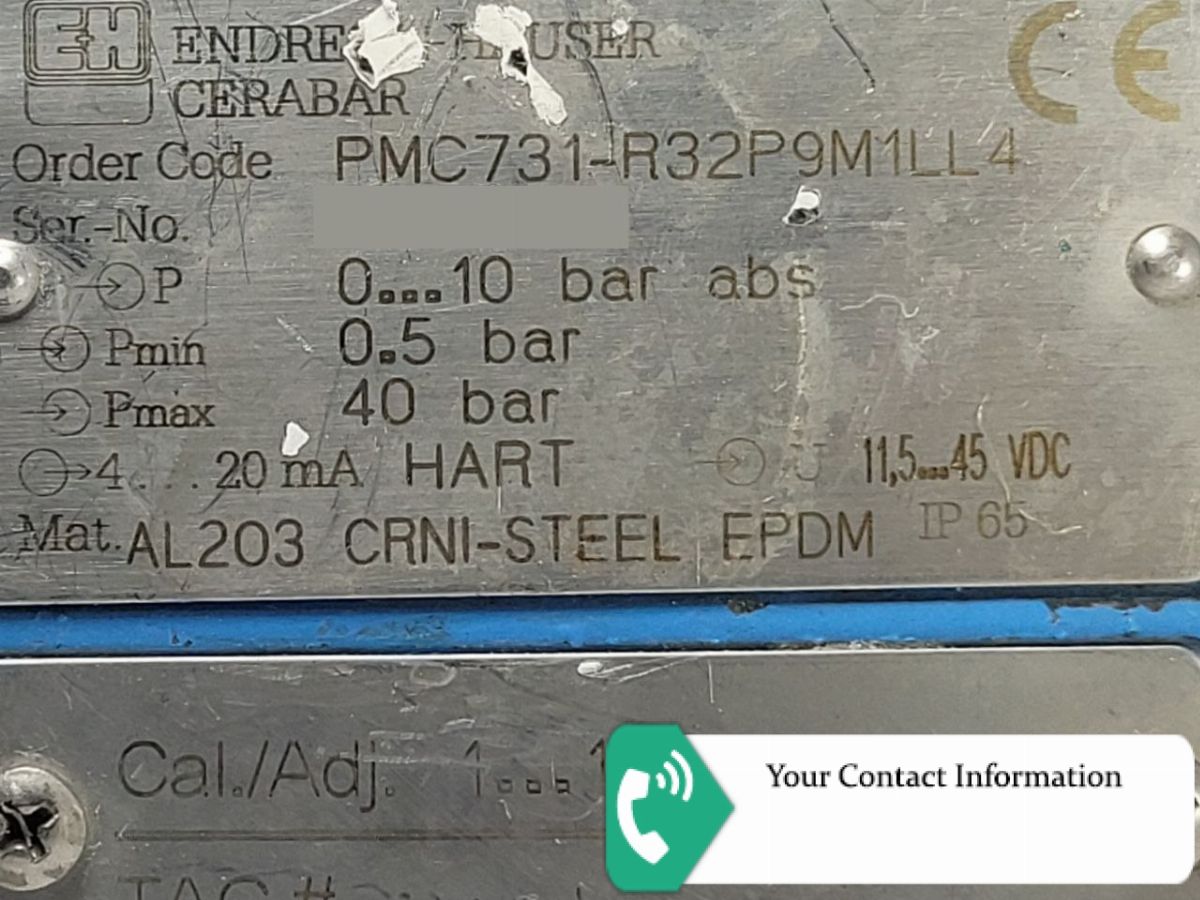

PMC731-R32P9M1LL4
Approval: R = Non-hazardous area
Housing; Cable Entry: 3 = Alu + LCD; gland M20 (EEx d > thread M20)
Sensor Range; Sensor Overload Limit: 2P = 0...10bar/1MPa/150psi abs; 40bar/4MPa/600psi
Calibration; Unit: 9 = Adjusted; see additional spec
Output: M = 4-20mA Hart + advanced software
Additional Option: 1 = Basic version
Process Connection: LL = Varivent N pipe DN40-162 PN40, 316L
Seal: 4 = EPDM
