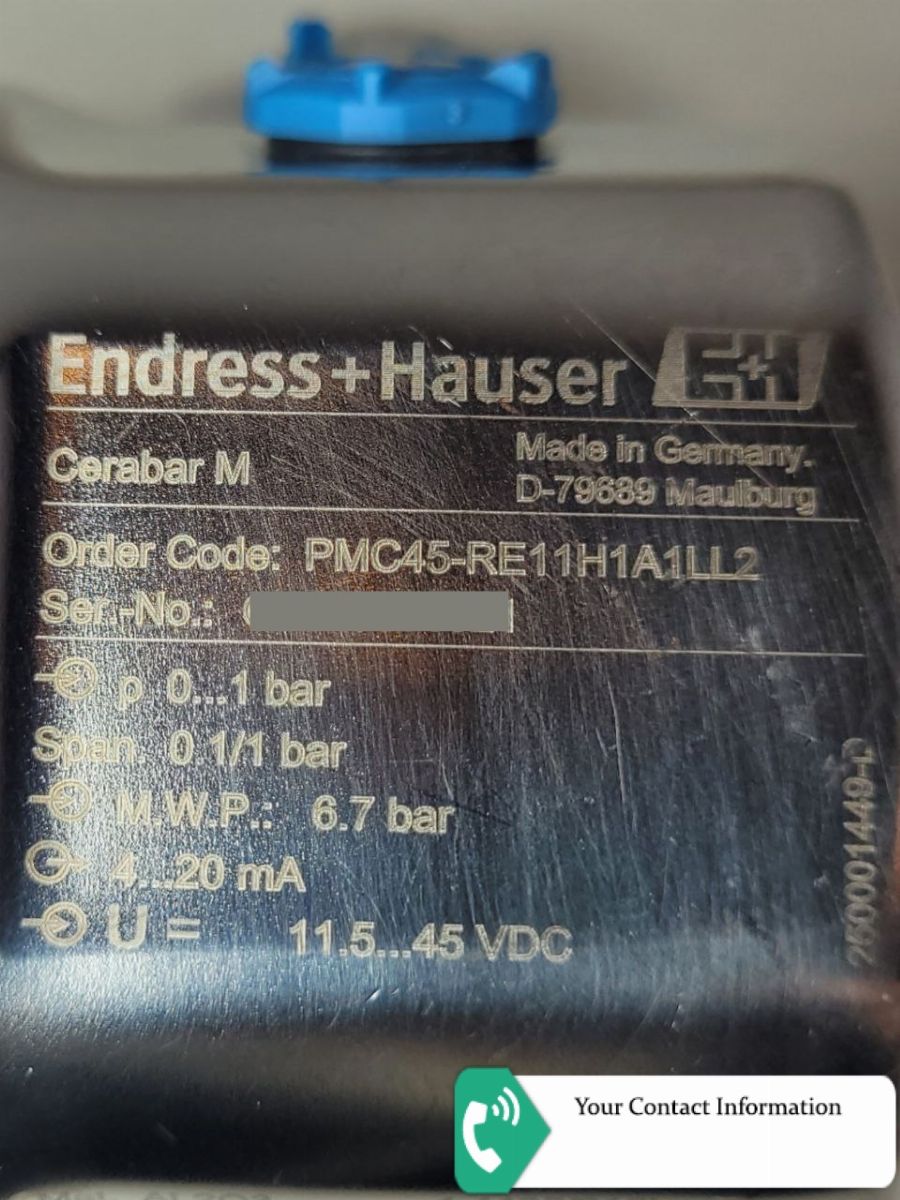

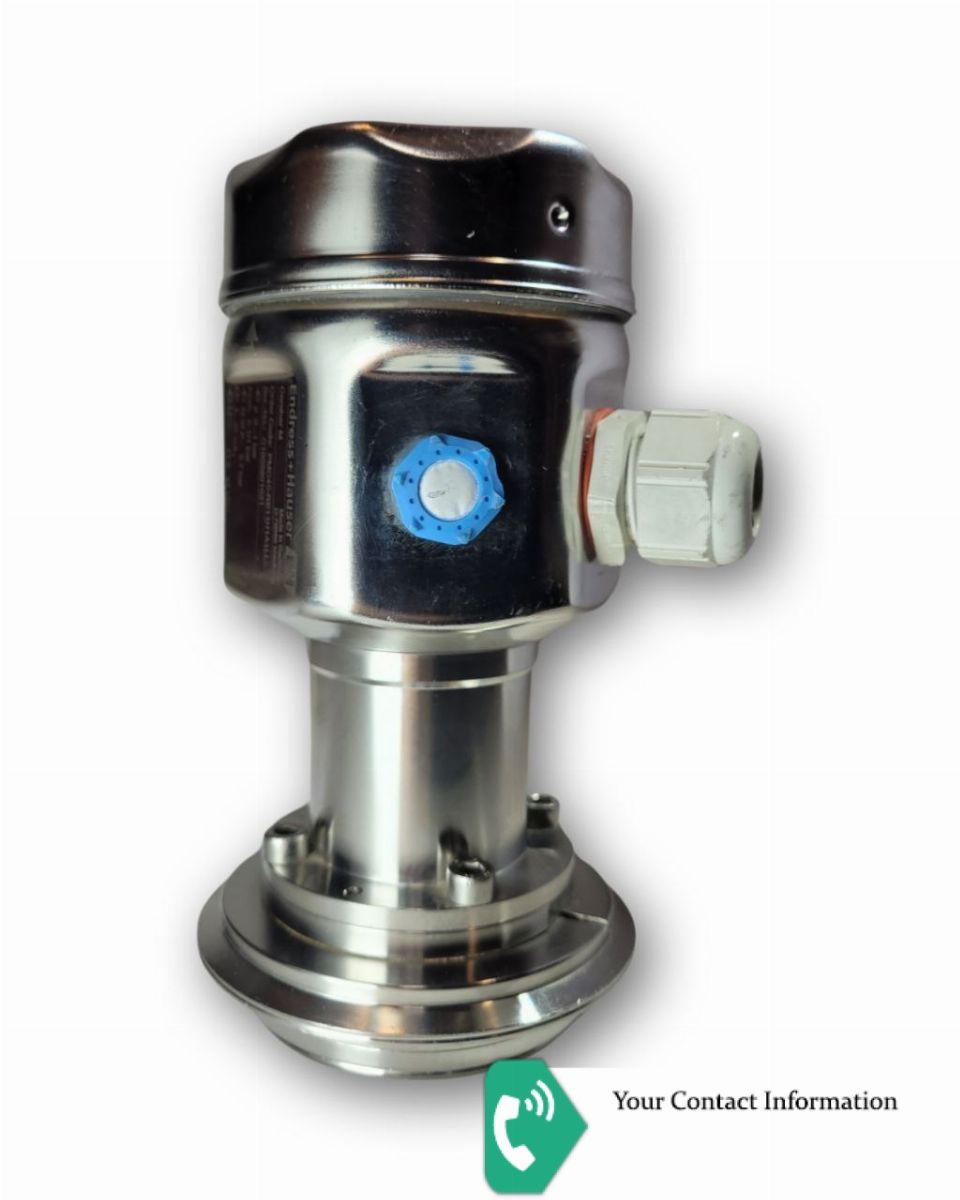

Cerabar M PMC45
PMC45-RE11H1A1LL2
Approval: R = Non-hazardous area
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 1H = 0...1bar/100kPa/15psi gauge; 10bar/1MPa/150psi
Calibration; Unit: 1 = 0.2% sensor range; mbar/bar
Output; Operating: A = 4-20mA analogue; w/o display
Additional Option: 1 = Basic version

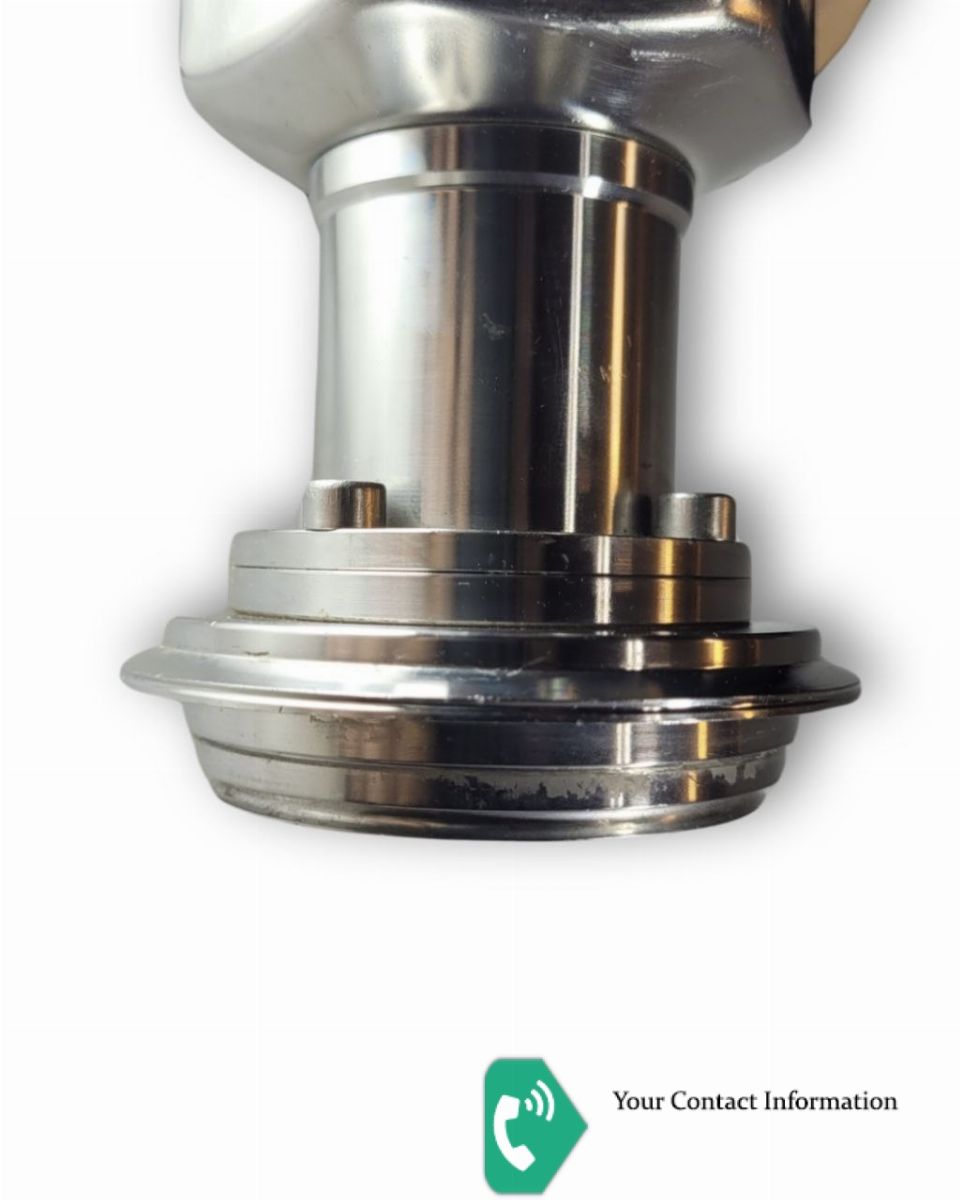

Process Connection: LL = Varivent N tube DN40-162 PN40, 316L, EHEDG, 3A with seal HNBR/EPDM

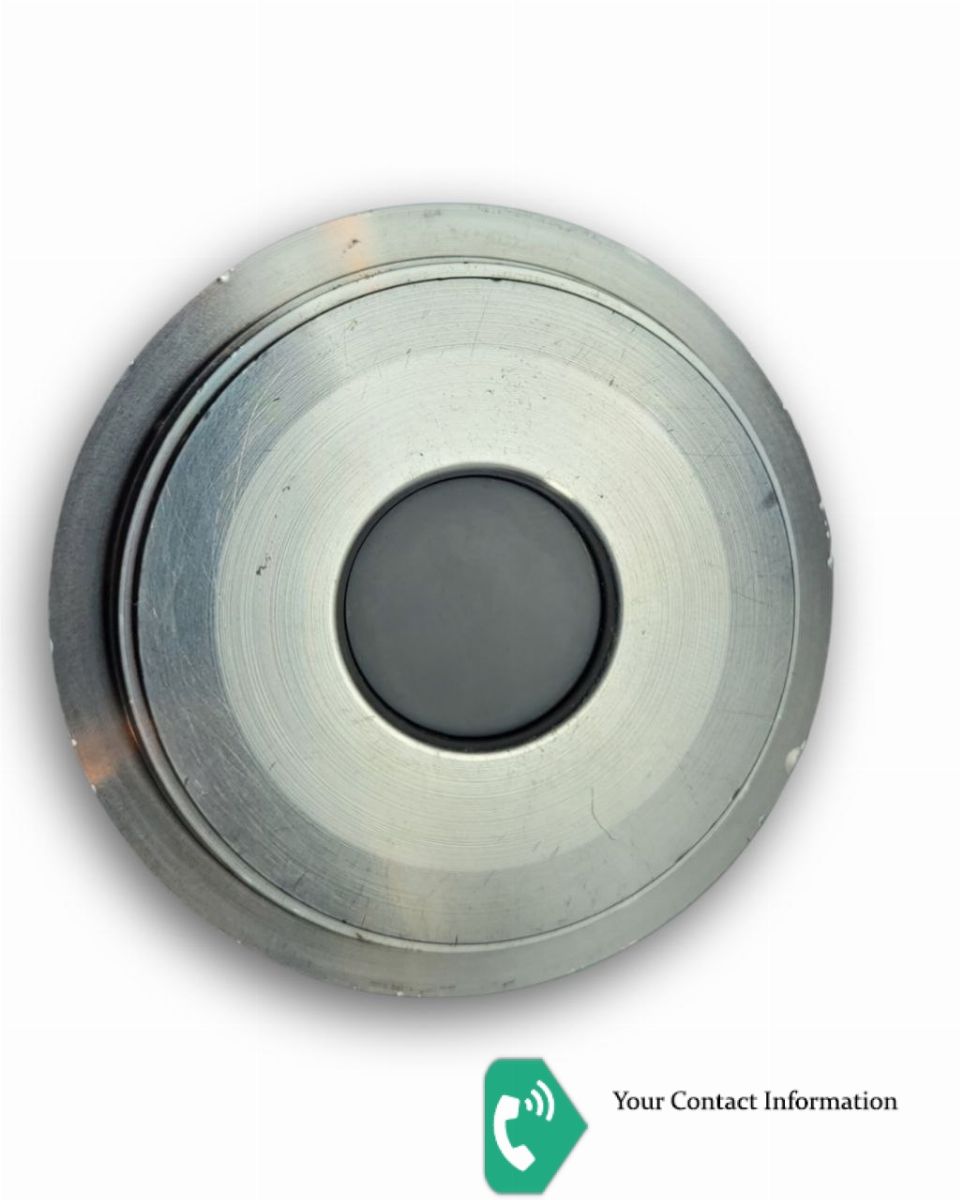

Sensor Seal: 2 = HNBR (FDA)
