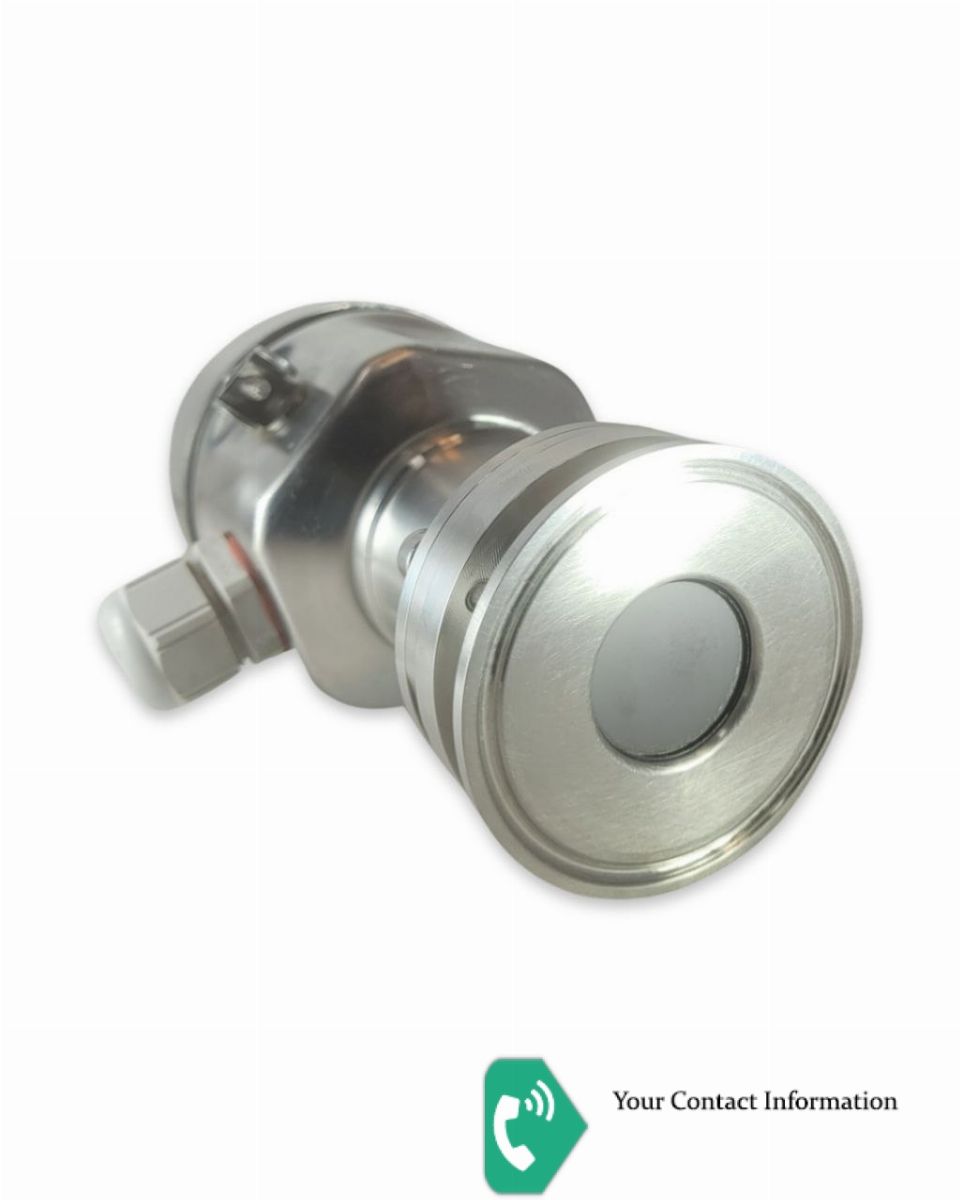

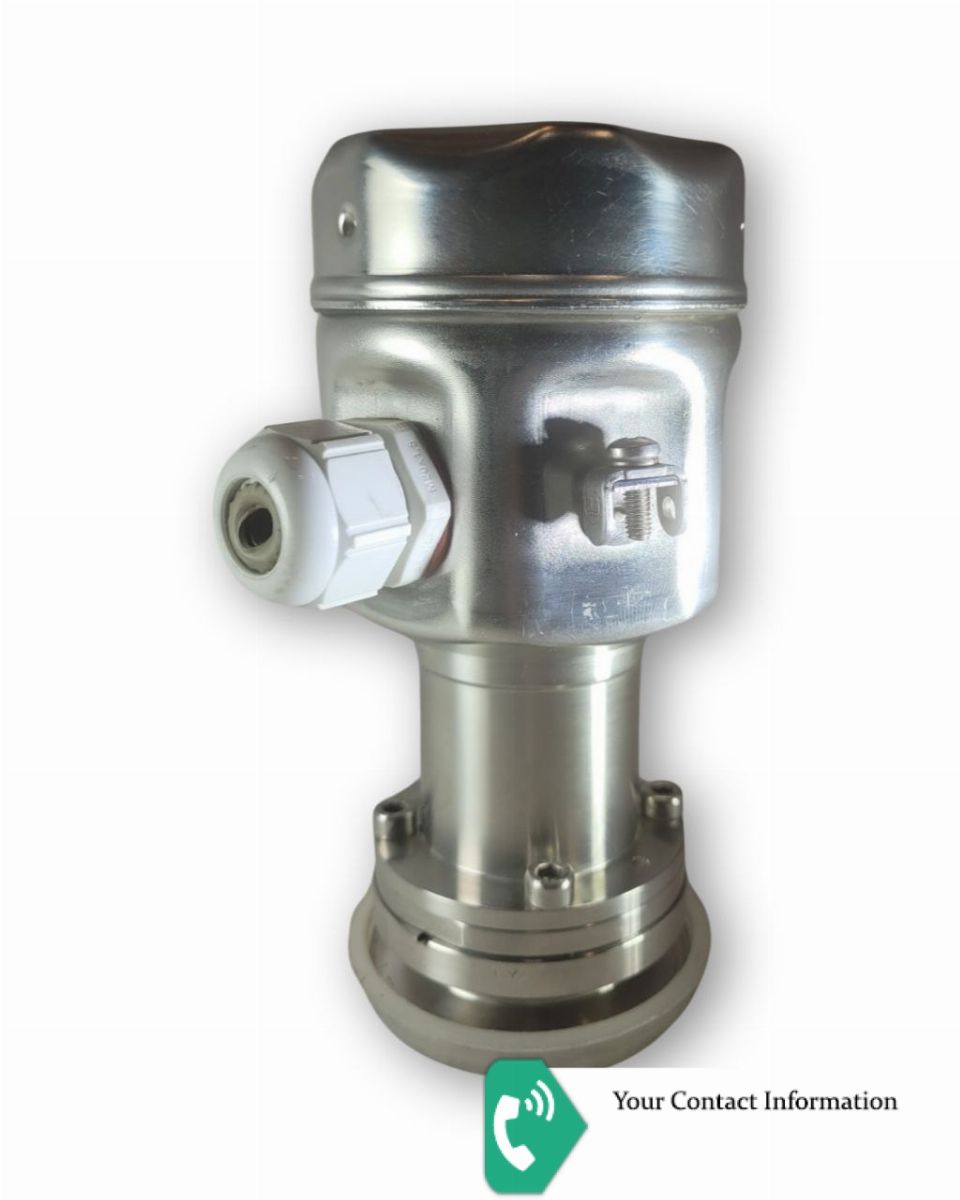

Cerabar M PMC45

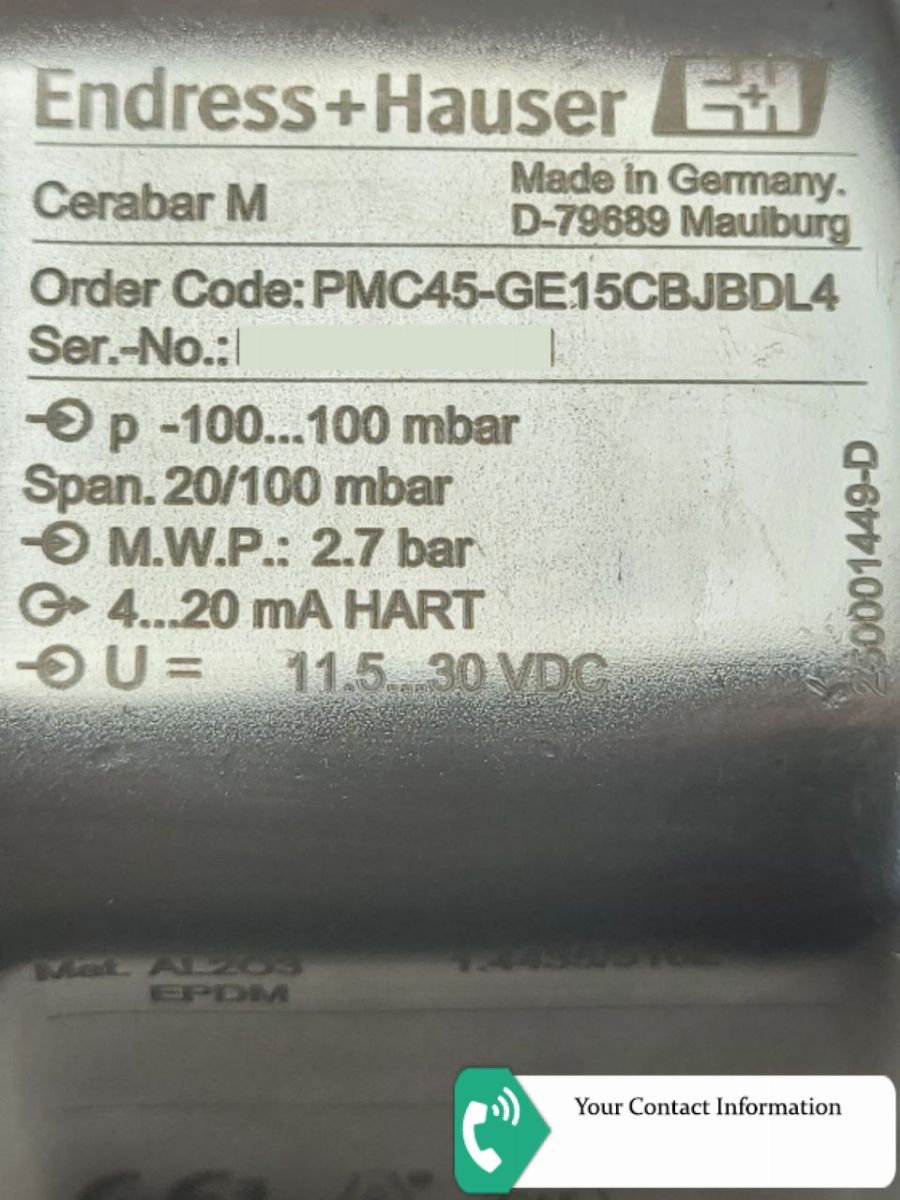

PMC45-GE15CBJBDL4
Approval: G = ATEX II 1/2G EEx ia IIC T6
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 5C = -100/-10/-1.5...100mbar/10kPa/1.5psi; 4bar/400kPa/60psi
Calibration; Unit: B = 0.2% see additional spec.
Output; Operating: J = 4-20mA HART; display 4-digit + bargraph
Additional Option: B = SIL + EN10204-3.1 material (process connection) inspection certificate SIL declaration of conformity
Process Connection: DL = Tri-Clamp ISO2852 DN40-51 (2"), 316L, DIN32676 DN50, EHEDG, 3A with seal HNBR/EPDM
Sensor Seal: 4 = EPDM (FDA)
