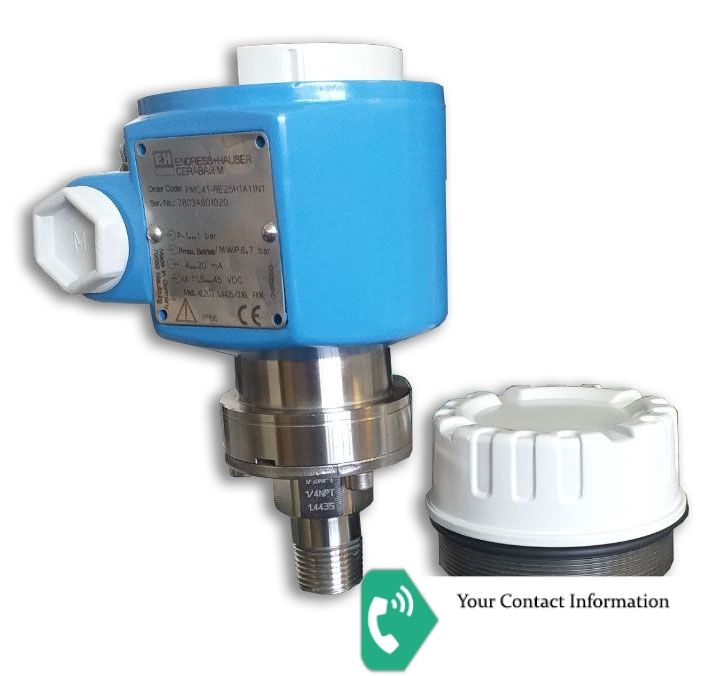

PMC41-RE25H1A11N1
Approval: R = Non-hazardous area
Housing; Electrical Connection: E2 = F18 Alu; gland M20, IP66
Sensor Range; Sensor Overload Limit: 5H = -1/-100/-15...1bar/100kPa/15psi; 10bar/1MPa/150psi
Calibration; Unit: 1 = 0.2% sensor range; mbar/bar
Output; Operating: A = 4-20mA analogue; w/o display
Additional Option: 1 = Basic version
Process Connection: 1N = Thread ANSI MNPT1/2 FNPT1/4, 316L
Sensor Seal: 1 = FKM Viton
