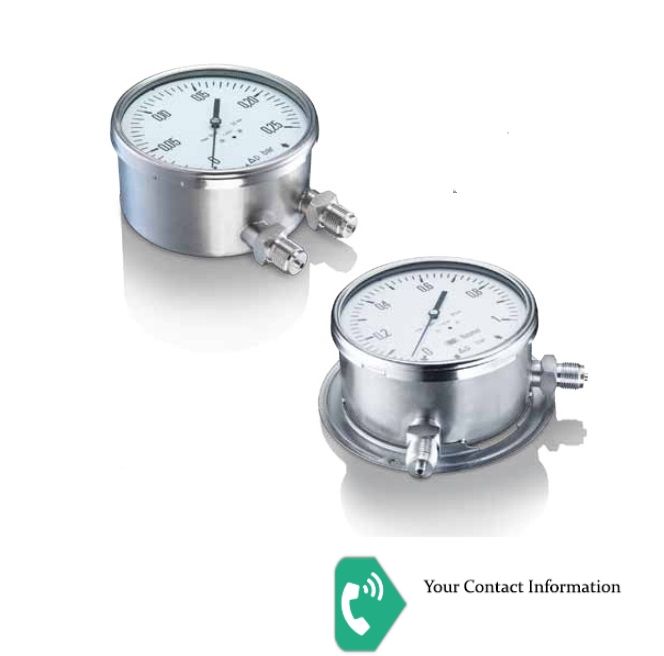

MT Differential pressure gauges
M=Model : Differential pressure gauge
T=Type of housing : Process connection 90° bottom (V-type) or lower back, baffle wall
7=Nominal size : 150 mm
A=Type of mounting Stainless steel case and bezel ring 1.4301 (AISI 304) : Bottom connection, back flange for wall mounting, 3 mounting holes
3= Process connection : G 1/2
2= Liquid filling : BH2: high viscosity glycerin 99.5% (medium : 0 ... +90°C)
B15=Unit of measurement / Pressure ranges (bar) :15
L=Max. static pressure
