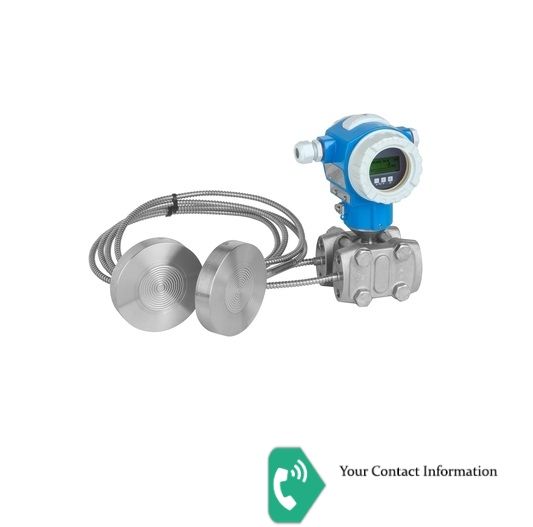

Deltabar S FMD78
1=Approval:ATEX II 1/2G Ex ia IIC T6
B=Output; Operating: 4-20mA HART; inside + LCD
C=Housing; Cover Sealing; Cable Entry:T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
7D=Nominal Range; Cell Material; PN:100mbar/10kPa/1.5psi; 316L; 160bar/ 16MPa/2400psi
E=Calibration; Unit: Customised pressure; see additional spec.
1=Membrane Material: 316L
YY=Process Connection: Special version, TSP-no. to be spec.
1=Fill Fluid: ..... m capillary, silicone oil
B=Additional Option 1: 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate
U=Additional Option 2: Mounting bracket, wall/pipe, 316L, heavy duty design
Z1=>>Marking: Tagging (TAG), see additional spec.
