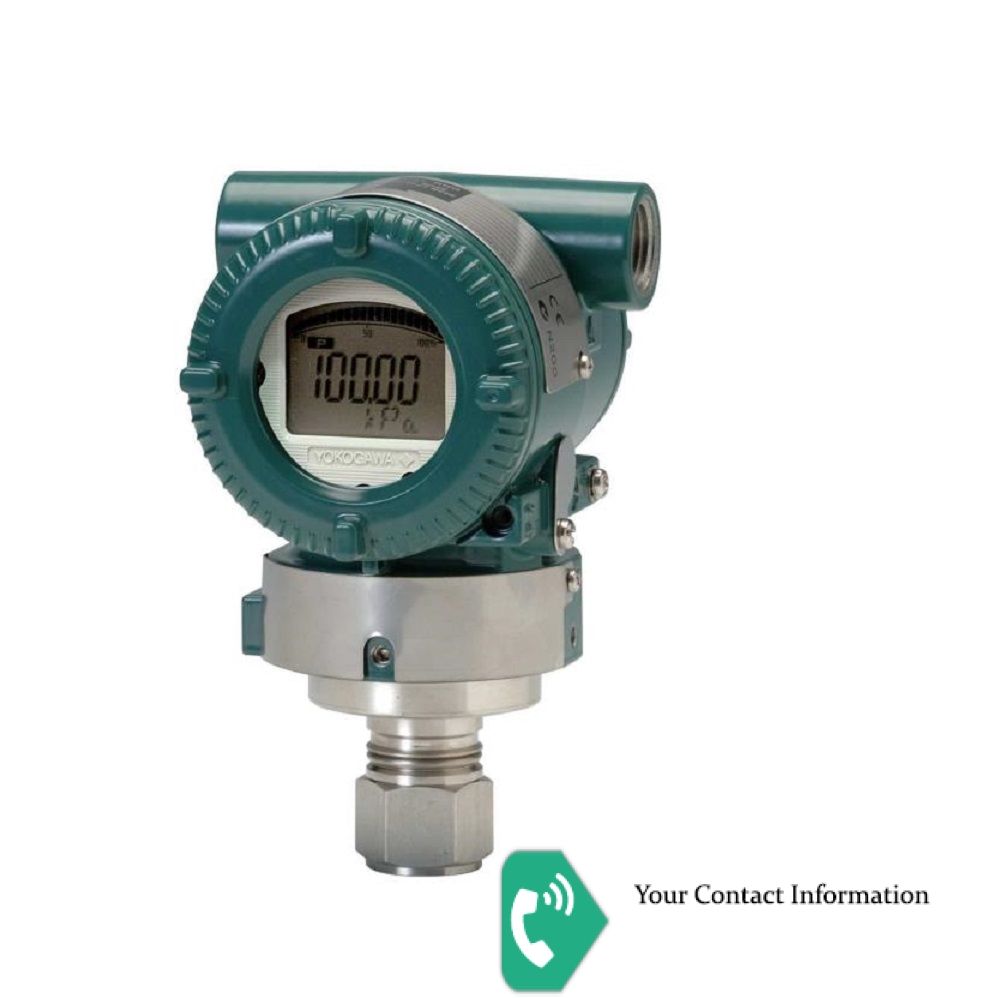

Gauge pressure transmitter EJA530A
E=Output Signal : 4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00EN)
B=Measurement span (capsule): 0.1 to 2 MPa {1 to 20 kgf/cm2} {14.5 to 290 psi} {1 to 20 bar}
S=Wetted parts material: [Process Connection: SUS316L ] [Diaphragm:Hastelloy C-276 ]
7=Process connections: 1/2 NPT male
N= Always N
0=Always 0
4=Electrical connection : M20 female, two electrical connections without blind plug
E=Integral indicator: Digital indicator with the range setting switch
L=Mounting bracket : SUS316 2-inch pipe mounting
FF1=Factory Mutual (FM) : FM Explosionproof Approva
HAC=High accuracy type : High accuracy
T05=Pressure test/Leak test Certificate : Test Pressure: 200 kPa (2 kgf/cm2)
