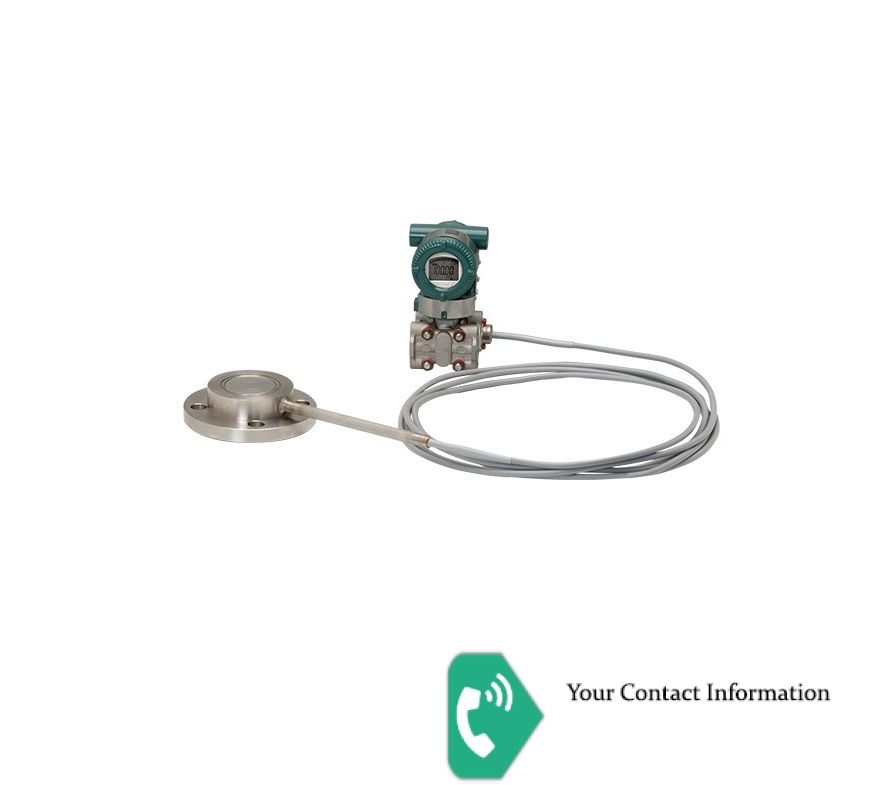

EJA438N Diaphragm Sealed Gauge Pressure Transmitter
F=Output Signal: Digital communication (FOUNDATION Fieldbus protocol / A= Measurement span : 0.06 to 3 MPa {0.6 to 30 kgf/cm2}
/ S=Wetted parts material : Diaphragm,Pipe,Others: JIS SUS316L / A1=Process Flange rating: ANSI Class 150 / 6=Diaphragm extension length : 150 mm / H=Process flange size / material: 4-inch (100 mm) / JIS SUS304 / B=Cover flange bolts material: JIS SUS630 /-A=Fill fluid: silicone oil / B=Always B / 06 = Capillary length (m) :Specify capillary length 6 m / -9=Installation: Horizontal impulse piping type, left side high pressure / 9=Electrical connection: M20 female, two electrical connections and a blind plug / D= Integral indicator: Digital indicator / A =Mounting bracket: JIS SECC 2-inch pipe mounting (flat type) /KS25=CENELEC ATEX (KEMA) CENELEC ATEX (KEMA) Intrinsically Safe Approval
Certificate: KEMA 02ATEX1344X
[Entity model]
Enclosure: IP67 / X1=Painting Coating change: Epoxy resin-baked coating /A=Lightning protector: Transmitter power supply voltage: 10.5 to 32 V DC (9 to 32 V DC for Fieldbus communication type) Allowable current: Max. 6000 A (1x40 µs), Repeating 1000 A (1x40 µs) 100 times /D3=bar calibration (bar unit) / M06=Mill Certificate : Process flange, Block, Pipe, Base /T46= Pressure test/Leak test Certificate ANSI/JPI Class 150 ,3 MPa {29.8 kgf/cm2}
