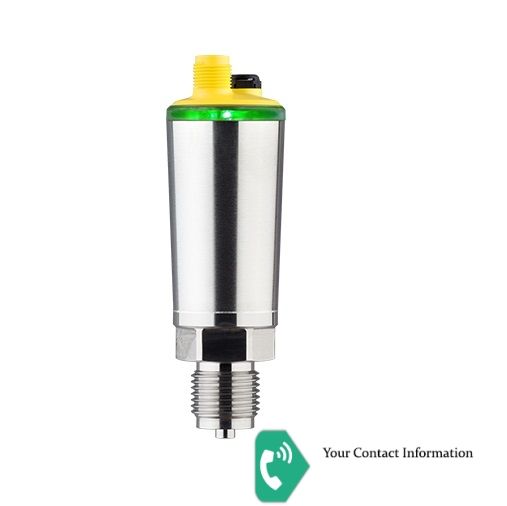

VEGABAR 29
Pressure sensor with switching function
With metallic measuring cell
XX= Explosion protection :for Ex-free area (CE, UKCA, RCM, c-UL-us)
X=Ship approval : without
X =Foodstuff/Pharmaceutical certificate :without
DU=Process fitting / Material: Thread G½, EN837; manometer connection / 316L
I=Measuring range : relative, 0...+25.0bar (0...+2500kPa)
M=Electrical connection / Protection : M12x1 / IP66/IP67/IP69
Z=Electronics : Two-wire: 4...20 mA
360° status display= with
Customer-specific adjustment = No
X=Sensor setting via smartphone and VEGA Tools app : without
Additional cleaning procedures: without
Characteristics, test certific: without
Material certificate: without
Measurement loop identification : without
Measuring cell type : Piezoresistive - metallic measuring cell
Min. process pressure in bar : -1
Max. process pressure in bar : 80
Customs tariff number (HS code) : 90262020
Software version : Current version
