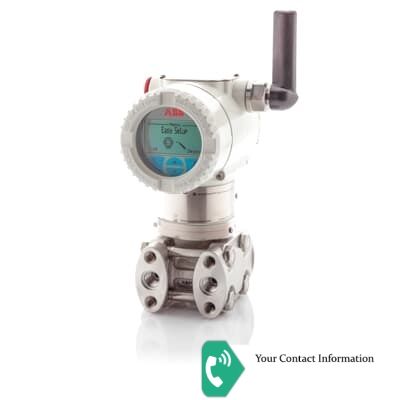

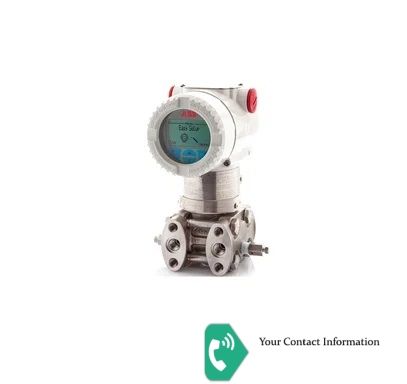

Differential pressure transmitters
Q =SENSOR - Span limits: 0.8 and 80 bar
S =Application : Differential measurement at standard static pressure
A = Diaphragm material / Fill fluid : AISI 316 L ss Inert fluid - Galden
A = Process flanges/adapters material and connection : AISI 316 L ss (Horizontal connection) 1/4 in. – 18 NPT-f direct
2 = Bolts/Gasket (wetted parts) - : AISI 316 ss PTFE
A = Housing material and electrical connection : Aluminium alloy ( barrel version) 1/2 in. – 14 NPT
1 = Output/Additional options : HART and 4 to 20 mA - Advanced functionality
V1 =Drain/vent valve : AISI 316 L ss on process axis
B1 =Mounting bracket: For pipe/wall mounting - Carbon steel
M5 =Operating manual: English
P1 = Preparation procedure : Oxygen service cleaning (only available with inert fill and PTFE gasket) Pmax =10 MPa for Galden; Tmax=60 °C/140 °F
C1 =Certificates : Inspection certificate EN 10204–3.1 of calibration
H3 = Material traceability: Inspection certificate EN 10204–3.1 of process wetted parts
