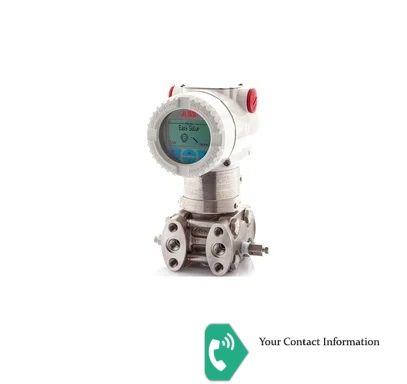

266DSH= MODEL: Differential Pressure Transmitter – BASE ACCURACY 0.06 %
F=SENSOR Span limits :0.4 and 40 kPa 4 and 400 mbar 1.6 and 160 inH2O / S=Application : Differential measurement at standard static pressure / S=Diaphragm material / Fill fluid: AISI 316 L ss , Silicone oil , NACE / B=Process flanges/adapters material and connection : AISI 316 L ss (Horizontal connection) , 1/2 in. – 14 NPT-f through adapter , NACE / 2=Bolts/Gasket: AISI 316 ss , PTFE / B=Housing material and electrical connection: Aluminium alloy ( barrel version) , M20 x 1.5 (CM 20) (TO BE USED for WirelessHART) / 1=Output/Additional options: HART and 4 to 20 mA - Advanced functionality (includes option R1) /ADDITIONAL ORDERING : V3=Drain/vent valve (material and position) : AISI 316 L ss , on flange side bottom , NACE / E1=Hazardous area certifications: ATEX Intrinsic Safety Ex ia / L1=Integral LCD: Digital LCD integral display with integrated keypad / B1=Mounting bracket (shape and material): For pipe mounting - Carbon stee / C1=Certificates (multiple selection allowed): Inspection certificate EN 10204–3.1 of calibration (9-point) / H1=Material traceability: Certificate of compliance with the order EN 10204–2.1 of process wetted parts
