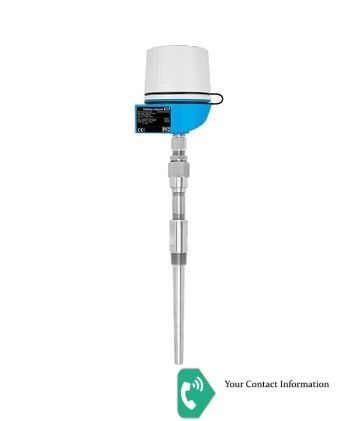

Modular thermometer, explosion-protected,
barstock thermowell, with thread or flange
Approval: A= Non-hazardous area
Head; Attachment Hinge: B= TA30H Alu, IP66/68; plastic
Cable Entry: A= 1x NPT1/2
Neck Length N; Material; Fitting: E= 148 mm; 316; NUN NPT1/2 male thread
Thermowell Material: C= 316
Extension T; D1; Df; Q1; Q2: 1= 70 mm; 30mm; 7mm; 20mm; 14mm
Insertion Length U: X= ..... mm
Process Connection: CA= Flange ANSI 1" 150 RF SO, A105
Head Transmitter; Range: A= TMT71 4-20mA; temp. range to be spec.
RTD; Wire; Measuring Range; Class: A= 1x Pt100 WW; 3; -200...+600oC; A
Additional Option: A= 0/+100oC, 1x RTD. The calibration offered is an ISO/factory calibration. The calibration certificate is not an accredited certificate and therefore not covered by the EA MLA.
