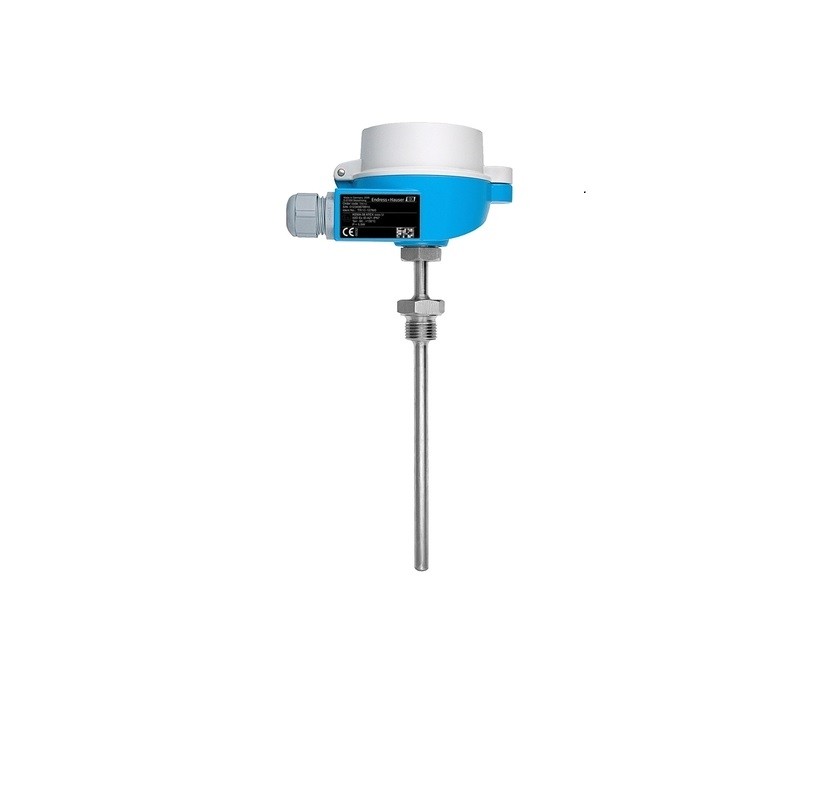

RTD Thermometer TR10
G=Approval: ATEX II1G Ex ia IIC T6
A=Head; Cable Entry: **TA20A Alu, IP66/IP67; M20
D=Pipe Diameter; Material: 9 mm; 316Ti, DIN43772-2G
9=Neck Length E: ..... mm, TSP-no. to be spec.
BH=Process Connection: G1/2 male thread DIN43772, 316Ti
R=Tip Shape: Reduced, L>=50mm
X=Immersion Length L: ..... mm
C=Head Transmitter; Range: Terminal block
2=RTD; Wire; Measuring Range; Class:1xPt100 TF; 3; -50...+400oC; A, increased vibration resistance
1=Material Certificate: EN10204-3.1 Material
0=Test Report: Not needed
0=Test/Calibration: Not needed /.
