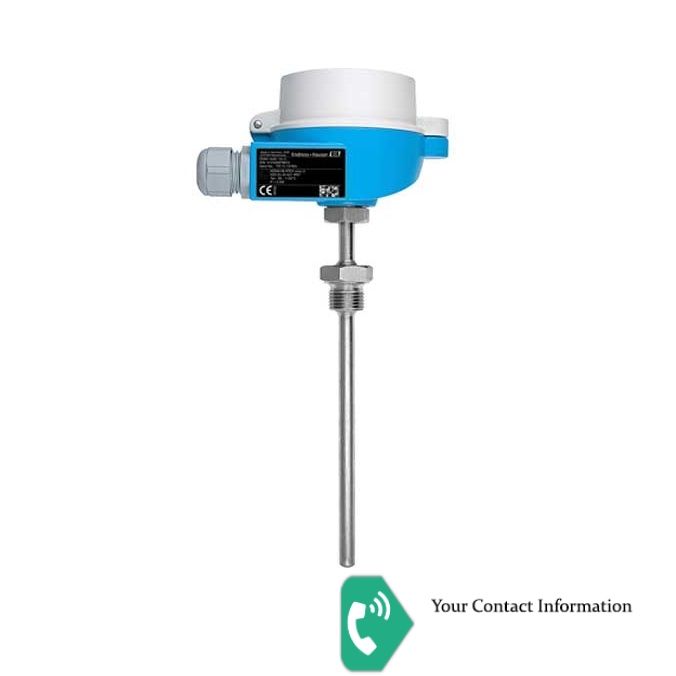

RTD Thermometer TR10
A=Approval: Non-hazardous area
B=Head; Cable Entry: TA30A Alu, IP66/68; M20
A=Pipe Diameter; Material: 9 mm; 316L, DIN43772-2G
1=Neck Length E: 80 mm, DIN43772-2G
CD=Process Connection: NPT1/2 male thread, 316L
S=Tip Shape: Straight
X=Immersion Length L: ..... mm
K=Head Transmitter; Range: TMT82 (HART); temp. range to be spec.
A=RTD; Wire; Measuring Range; Class: 1xPt100 WW; 3; -200...+600oC; A
0=Material Certificate: Not needed
0=Test Report: Not needed
4=Test/Calibration: Factory calibration transmitter, 6-points: at 0/20/40/60/80/100% of preset measurement range
