Endress+Hauser

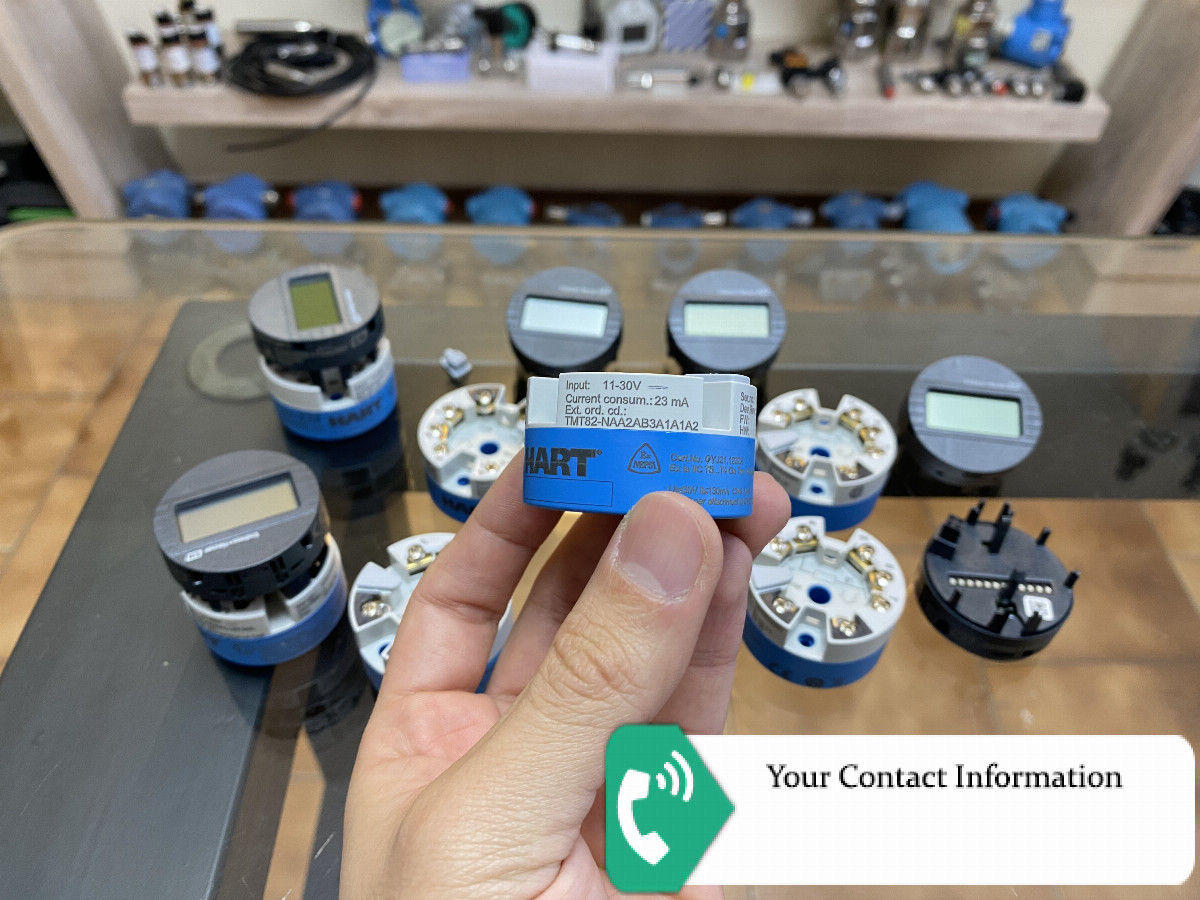

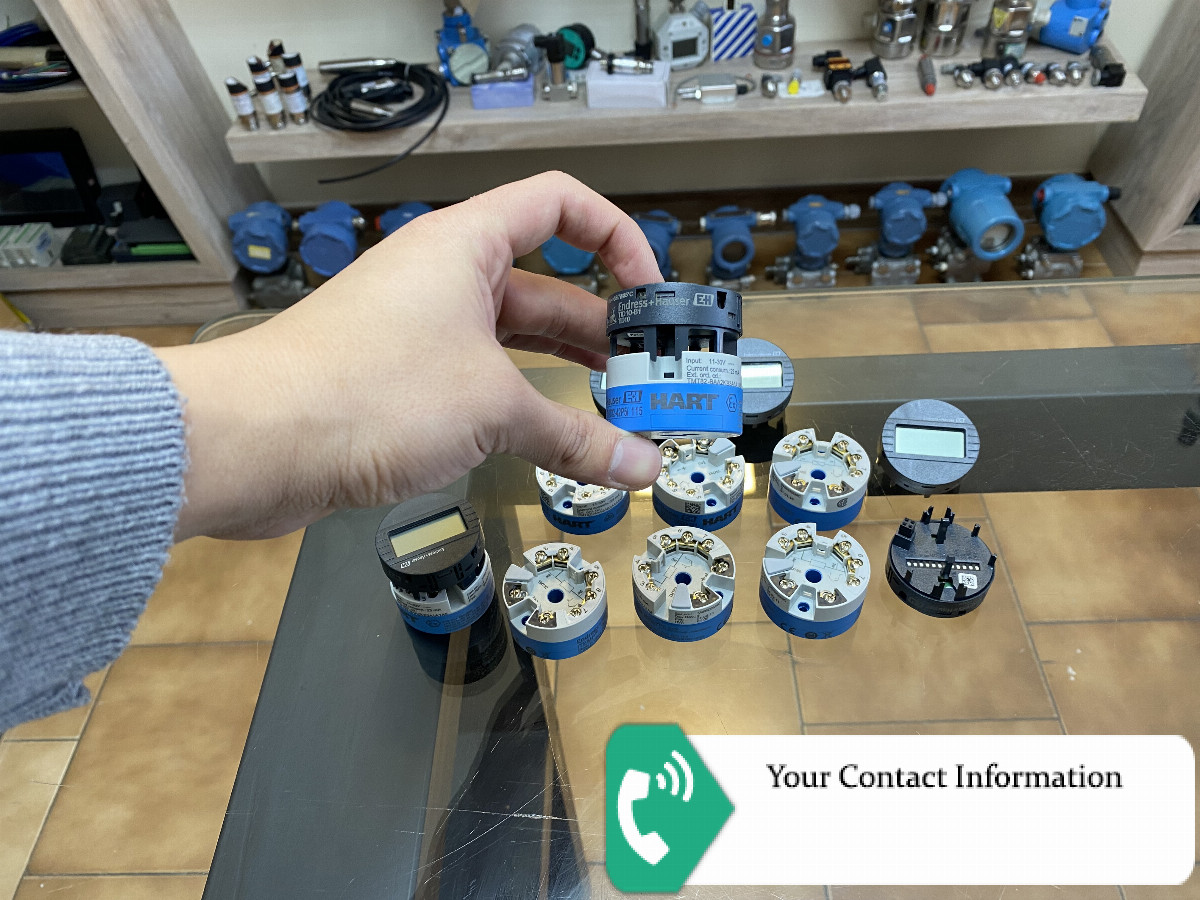

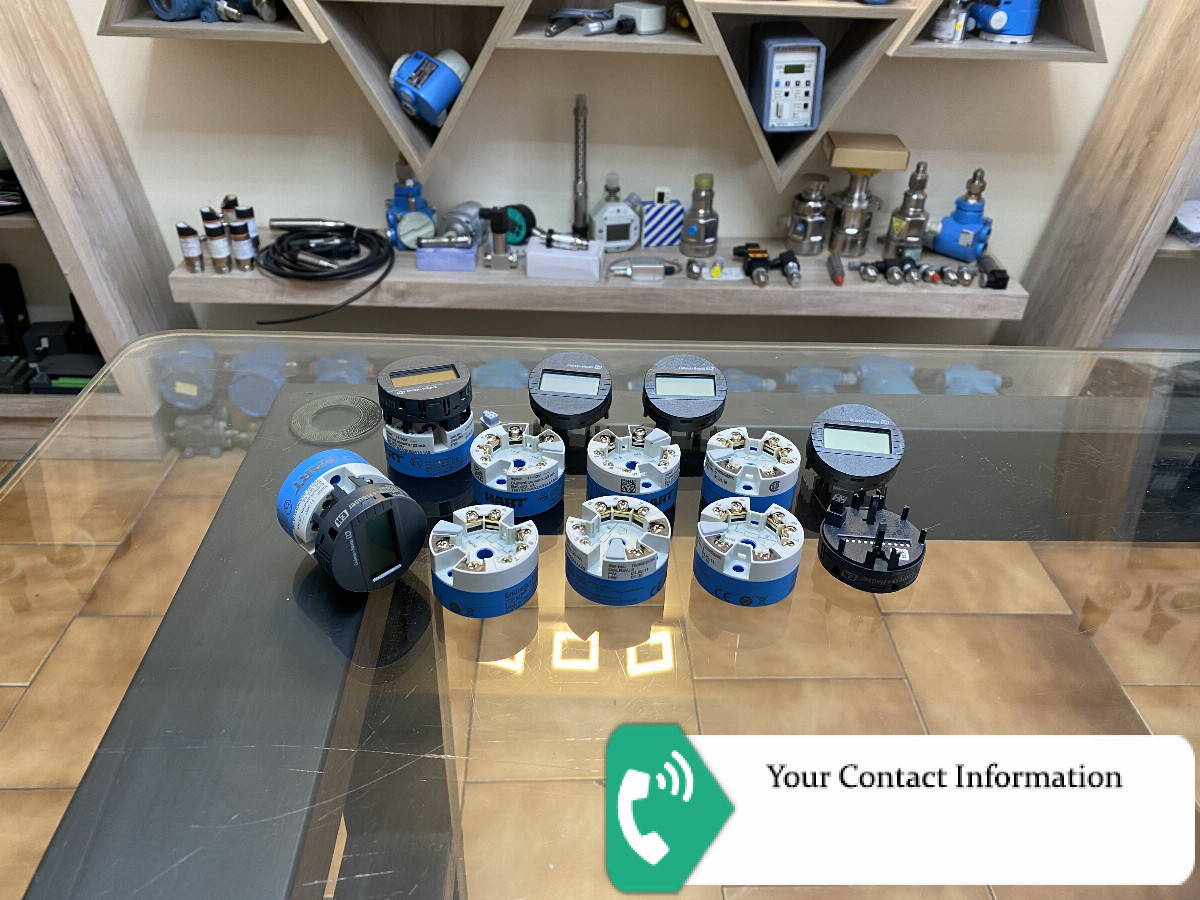

iTEMP TMT82, Transmitter HART

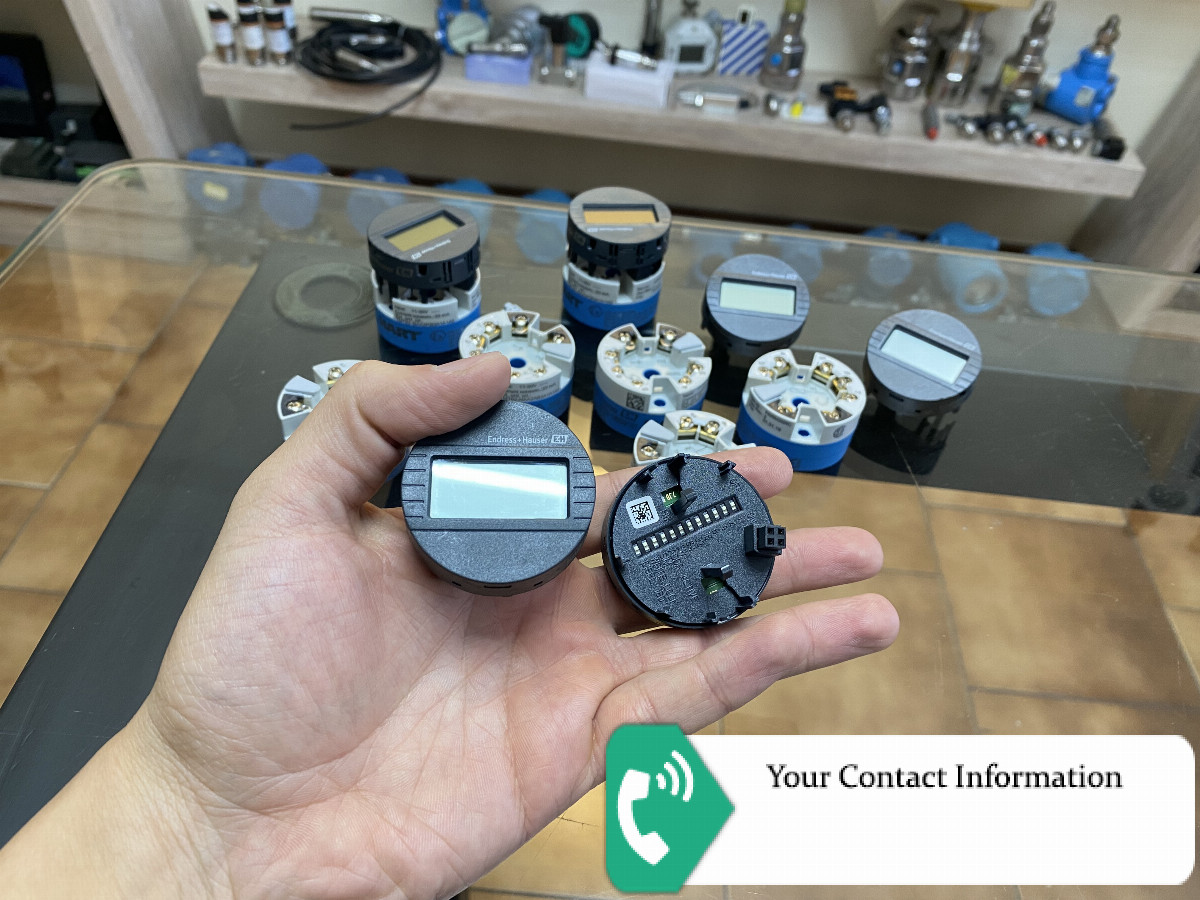

TMT82-NAA2AB3A1A1A2 with display TID10-B1
NA = NEPSI Ex ia IIC T6 Ga
A = HART; 1x 4-20 mA
2 = Screw terminals, housing form B, DIN EN 50446
A = W/o, mounting set DIN standard
B3 = Ch1: RTD 3-wire, Ch2: RTD 3-wire
A1 = Pt100, IEC60751 (a=0.00385), -200...+850oC, min. span 10K
A1 = Pt100, IEC60751 (a=0.00385)
A2 = PV = CH1; SV = CH2
Display Unit Head Transmitter
TID10-B1
B1 = ATEX II2G Ex ia IIC T4/T5/T6
