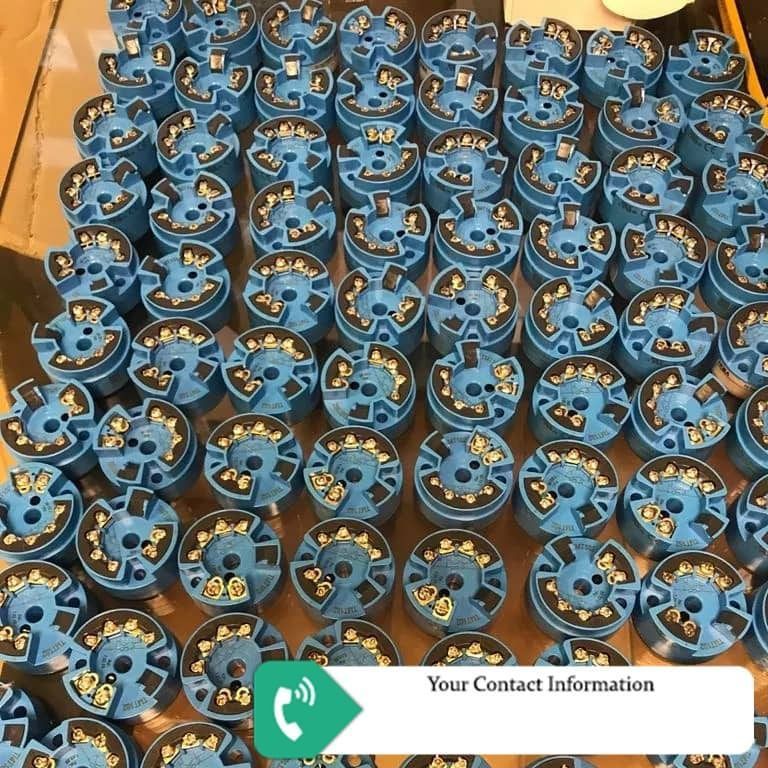

Temperature transmitter
Approval: AA Non-hazardous area
Communication; Output Signal: A HART; 1x 4-20mA
Electrical Connection: 2 Screw terminals, housing form B, DIN EN 50446
Field Housing: A W/o, mounting set DIN terminal head
Configuration Universal Input: B1 Ch1: RTD 3-wire, Ch2: inactive
Sensor Type Input 1: A1 Pt100, IEC60751 (a=0.00385), -200...+850oC, min. span 10K
Sensor Type Input 2: AA Inactive
Input; Interconnection: A1 PV=CH1; CH2 inactive
