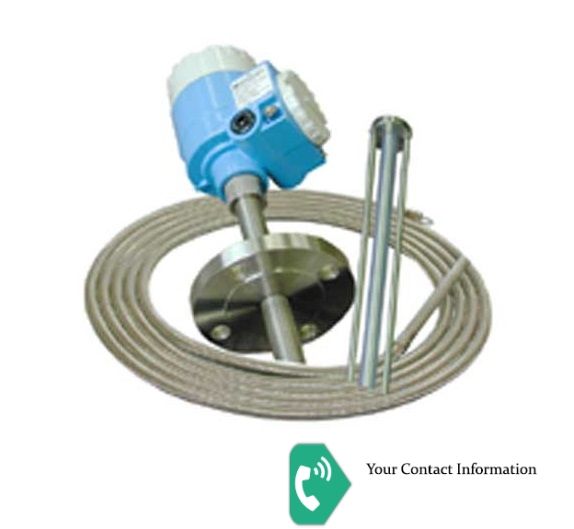

Prothermo NMT539
Intelligent high precision average temperature
device + capacitance water bottom device for tank gauging
B=Approval: ATEX Ex ia IIB T2-T6
3=Application: Temperature, water bottom, converter
1=Temperature Measuring Range: -40...+100oC (T4)
1=Water Bottom Measuring Range: 1m/3.3ft
B=Cable Entry: Thread NPT1/2
1=Process Connection: NPS 2" Cl.150 RF, 316 flange ASME B16.5
D=Temperature Element: 5x Pt100
5=Temperature Element Spacing: 3m/118"
A=Probe Length: ...mm
A=Mounting Attachment: Not selected
