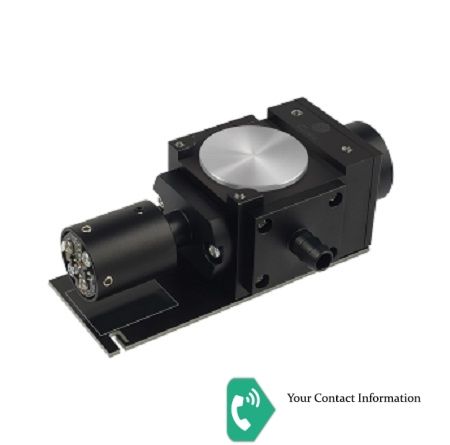

28.3LPM Laser Particle Count Sensor Module PM5100
Operating principle : Laser scattering
Measurement range : 0~10,000,000 pcs/L (1pcs/L=28.3pcs/cf)
Output channels : >0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm
Response time : 1 second
Time to first reading : ≤ 8 seconds
Sampling flow rate : Recommend 28.3 L/min
Working condition : 0℃~45°C, 0-95%RH (non-condensing)
Storage condition : -20°C ~ 60°C, 0-95%RH (non-condensing)
Power supply : 4.8~5.2VDC
Working current : <200mA
Digital output : UART_TTL/IIC(3.3V/5V)
