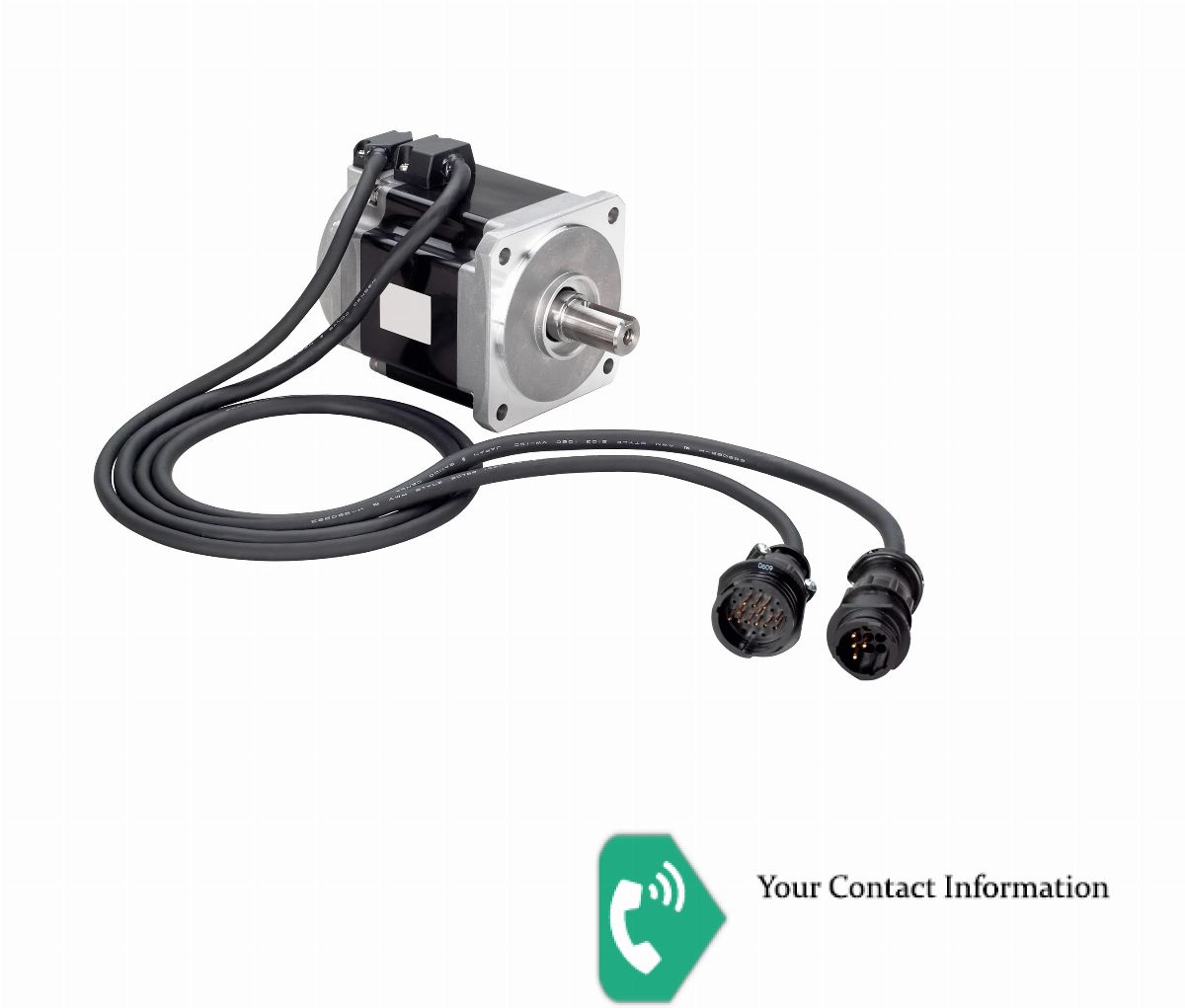

TL-Series Servo Motors
SERIES DESIGNATOR: TL = Low Inertia
TYPE:Y = Leads with Circular Connector
VOLTAGE RATING: A = 230 V ac
FLANGE SIZE ,Diameter of Mounting Bolt Circle for Metric Motors, or NEMA size: 25 = 90 mm or NEMA 34
MAGNET STACK LENGTH DESIGNATOR: 30=
RATED SPEED: P = 5000 rpm
FEEDBACK: B = Absolute Encoder, Battery-backed Multi-turn
ENCLOSURE/SHAFT KEY/SHAFT SEAL: J = IP65 Housing/Shaft Key/No Shaft Seal
CONNECTORS: 6 = 1m (39.4 in.) Leads with Circular Plastic Connectors
BRAKE: 4 = 24V dc Brake
FACTORY DESIGNATED OPTIONS: AA = Standard
