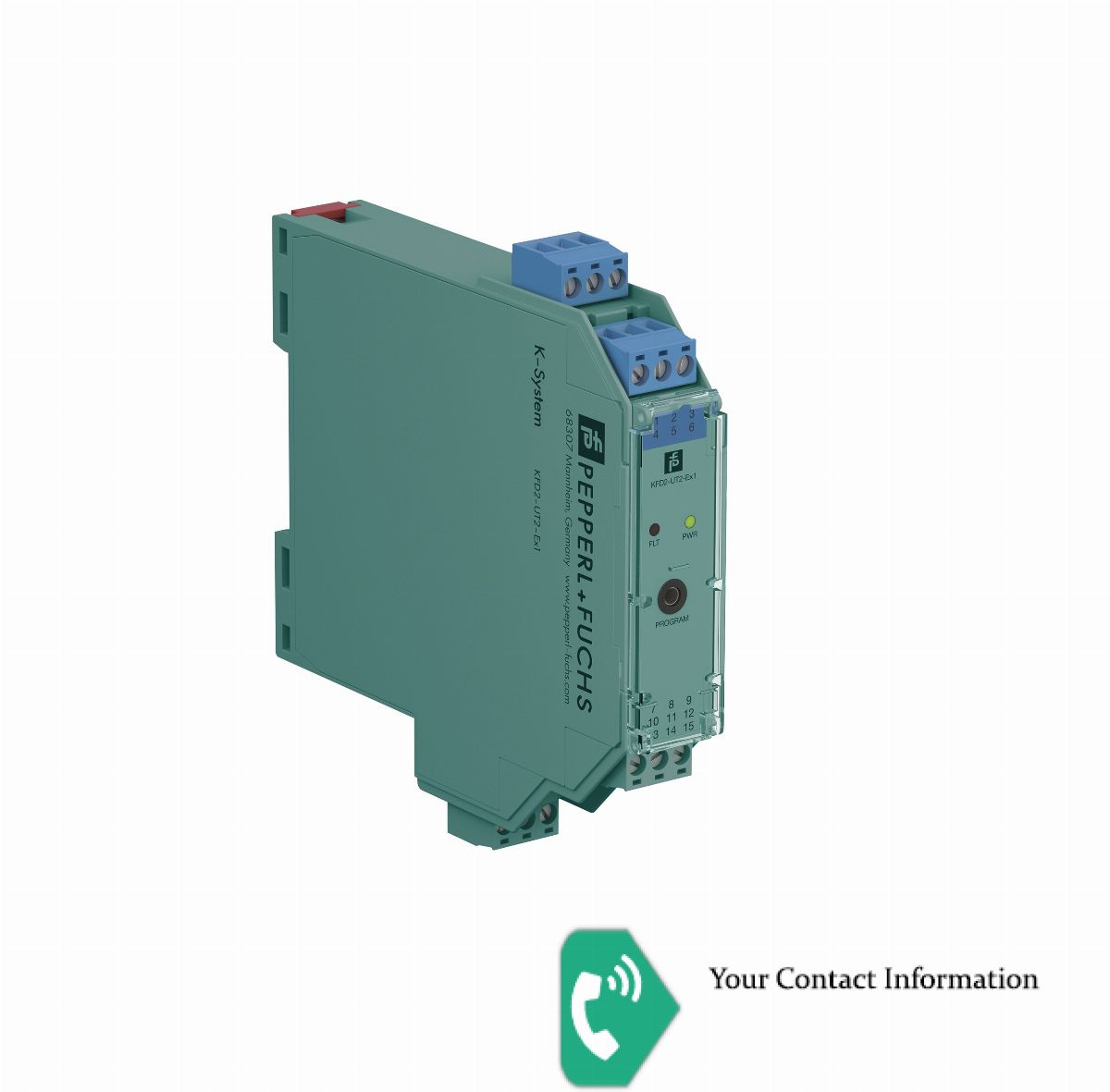

Universal Temperature Converter
KFD2-UT2-Ex1
1-channel isolated barrier
24 V DC supply (Power Rail)
Thermocouple, RTD, potentiometer or voltage input
Current output 0/4 mA ... 20 mA
Sink or source mode
Configurable by PACTware
Line fault (LFD) and sensor burnout detection
Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
Connection : terminals 14+, 15- or power feed module/Power Rail
Rated voltage Ur : 20 ... 30 V DC
Ripple : within the supply tolerance
Power dissipation : ≤ 0.98 W
Power consumption : max. 0.98 W
