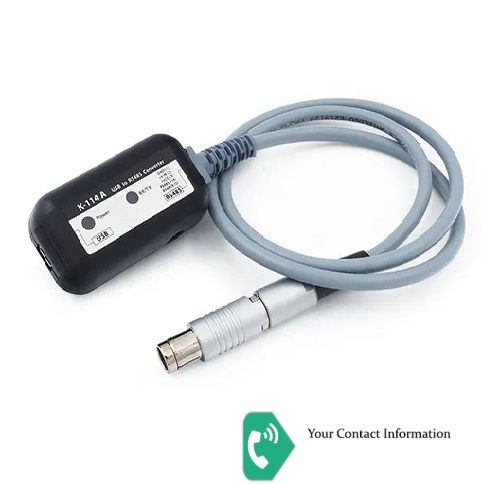

Interface converter
Communication USB – RS485
Power supply to end consumer (without power adapter) : 12 VDC / max. 40 mA
External power supply (with power adapter) : 12…20 VDC / <150 mA
Voltage input : 0…12 VDC / Accuracy 0,3 %FS (RI ≥ 30 kΩ)
Resolution of voltage input : <0,016 V
Current measurement : 0…40 mA / Accuracy 0,3 %FS
Resolution of current measurement : <0,05 mA
Interface / plug type : USB 2.0 / Mini USB-B
RS485 configuration parameters : ECHO / BIAS (2 x 560 Ω) / Termination (120 Ω)
